SLX-LX3054UWC

LED Indication - Discrete Overview

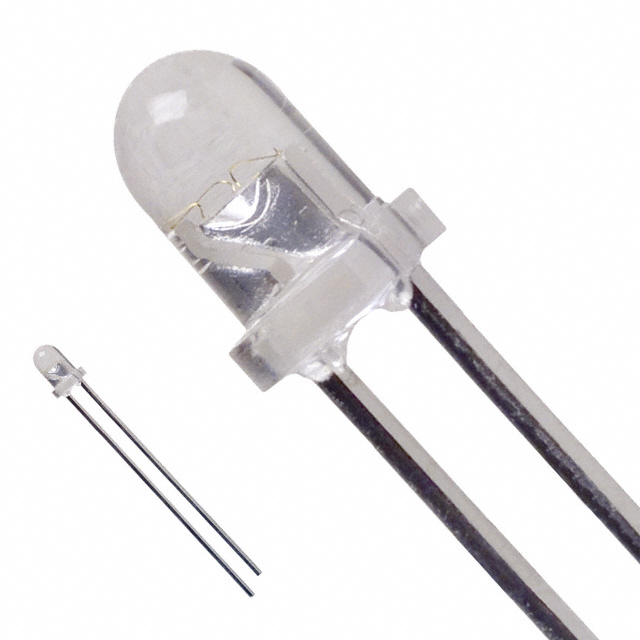

The SLX-LX3054UWC is a standard through-hole LED manufactured by Lumex Opto/Components Inc. It features a water clear dome lens and emits white light with a color temperature of 8000K. The component has a luminous intensity of 3300 mcd and operates at a forward current of 30 mA. It utilizes a T-1 (3 mm) package with a 30-degree viewing angle. The device requires an operating supply voltage of 3.5 V and functions within a temperature range of -30 C to +80 C.

LED Indication - Discrete Feature Summary

• Emits white light with a specified 8000K color temperature
• Features a water clear dome lens for focused illumination
• Designed for through-hole mounting in a T-1 (3 mm) package

LED Indication - Discrete Applications

• Panel indicators
• Status lights
• General illumination

LED Indication - Discrete Procurement Notes

Verify the exact part number against official Lumex documentation to confirm specifications. Ensure compatibility with required forward current and voltage parameters. Check RoHS compliance status if environmental regulations apply. Confirm packaging quantity and lead times with authorized distributors before ordering.

LED Indication - Discrete Selection Notes

Select this component when a bright white indicator is needed with a narrow beam angle. The 30-degree viewing angle suits applications requiring directed visibility. Consider the 30 mA forward current requirement for circuit design. Ensure the operating temperature range meets the environmental conditions of the target application.

LED Indication - Discrete Part Context

This LED belongs to Lumex's standard through-hole LED series. It shares the T-1 physical form factor with other variants in the lineup but differs in lens clarity, emission color, and optical intensity. It is distinct from surface-mount or diffused lens alternatives.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
