SLY 1 081 36 S

Headers, Male Pins Overview

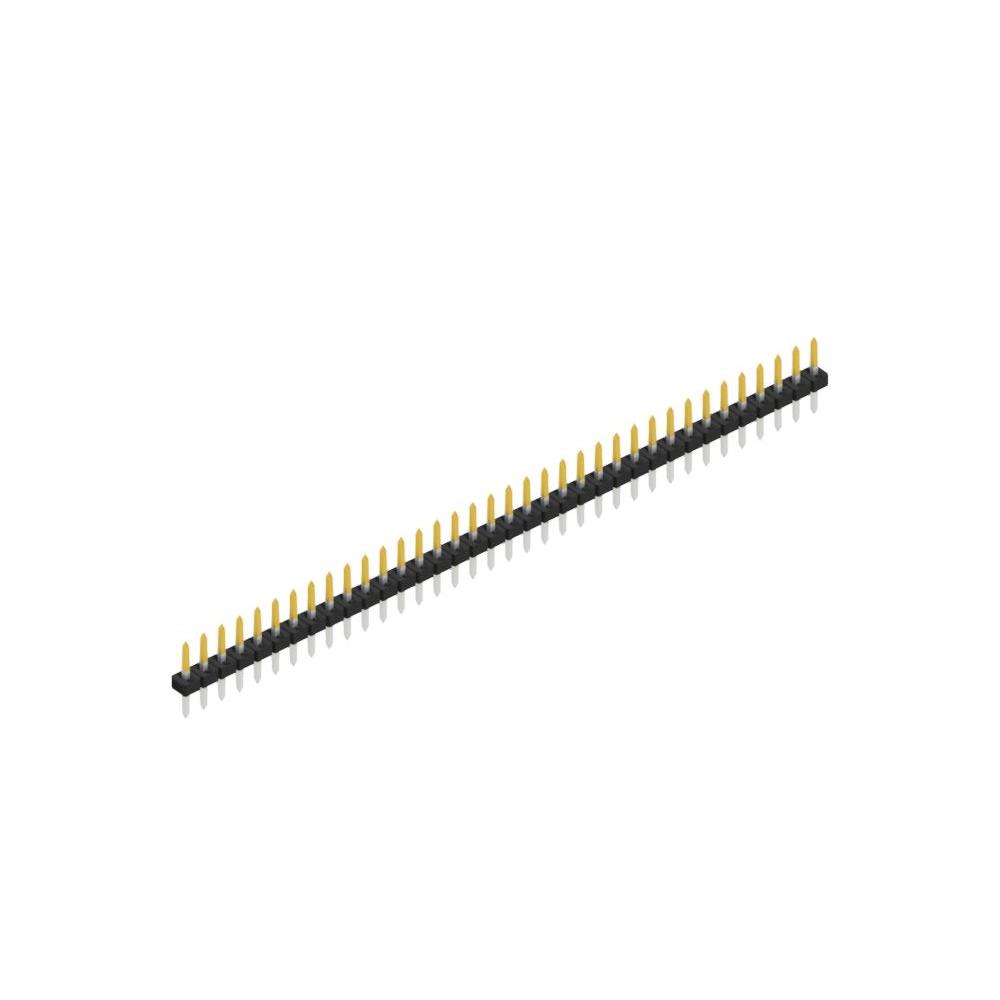

The SLY 1 081 36 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 2.00 mm pitch spacing and accommodates 36 positions. The component utilizes a through-hole mounting style with square contact pins made from a copper-tin alloy. Contact surfaces are selectively gold-plated, while the contact sleeves feature nickel plating of at least 0.2 micrometers thickness. The insulator material is polyamide (PA46), providing thermal stability within an operating range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Selective gold plating on contact surfaces ensures reliable signal transmission
• Adjustable insulator positioning allows for flexible design integration
• Through-hole termination provides secure mechanical board attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm the exact surface finish specifications. Ensure the selected variant matches the required 2.00 mm pitch and 36-position configuration for your application. Cross-reference the datasheet for precise dimensional tolerances and thermal ratings before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this connector when a 2.00 mm pitch male header is required for through-hole applications. Consider the selective gold plating for corrosion resistance and signal integrity. Verify that the 36-position count aligns with the target circuit layout. Confirm compatibility with mating connectors regarding pin dimensions and insulation height specifications.

Headers, Male Pins Part Context

This component belongs to the SLY 1 081 series of headers from Fischer Elektronik. The series offers various position counts and pitch options. The SLY 1 081 variants typically feature adjustable insulator positioning, allowing designers to customize the effective length of the connector assembly for specific spatial constraints in electronic enclosures.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, 36-position count, and through-hole mounting type. Verify identical contact materials and plating specifications to maintain electrical performance. Check mechanical dimensions for interchangeability in existing PCB footprints.
