SLY 6 040 66 G

Headers, Male Pins Overview

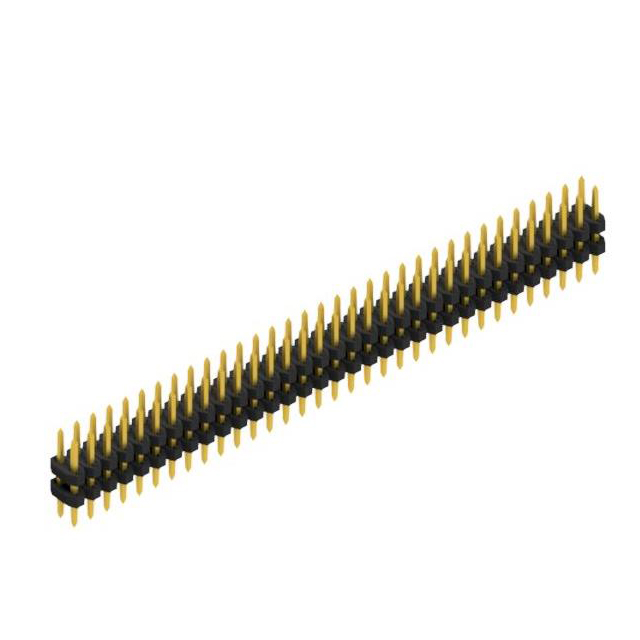

The Fischer Elektronik SLY 6 040 66 G is a surface-mount male pin header connector from the SLY 6 series. It features 66 contacts arranged in two rows with a 2.00 mm pitch spacing and 2.00 mm row spacing. The connector utilizes bronze contact material with gold plating for reliable signal transmission. Designed for through-hole or surface-mount applications, it operates within a temperature range of -40°C to +125°C. The housing is constructed from thermoplastic material, providing mechanical stability and electrical insulation for board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Dual-row configuration with 66 positions for high-density connectivity
• Gold-plated bronze contacts ensure corrosion resistance and low contact resistance
• 2.00 mm pitch spacing supports precise alignment in compact PCB layouts
• Thermoplastic housing offers thermal stability and mechanical durability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly applications
• Industrial control module interfaces
• Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm compatibility with automated surface-mount placement equipment if applicable. Ensure storage conditions maintain integrity of the gold-plated contacts prior to assembly. Cross-reference datasheet specifications against design requirements for thermal and electrical performance.

Headers, Male Pins Selection Notes

Select this component when a 66-position dual-row header is required with 2.00 mm spacing. Consider the gold-plated bronze contacts for environments requiring oxidation resistance. Evaluate the operating temperature range against system thermal profiles. Compare physical dimensions against available PCB real estate to ensure proper fitment during assembly.

Headers, Male Pins Part Context

This connector belongs to the Fischer Elektronik SLY 6 series, which provides standardized solutions for electronic interconnects. The series includes various pole counts and configurations to support diverse application needs. Fischer Elektronik manufactures these components to meet rigorous quality standards for industrial and commercial electronics markets.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 66-position count, 2.00 mm pitch, and dual-row layout. Verify identical mounting style and contact material specifications. Check for equivalent thermal ratings and housing material properties before integration.
