SM1204SPGC

LED Indication - Discrete Overview

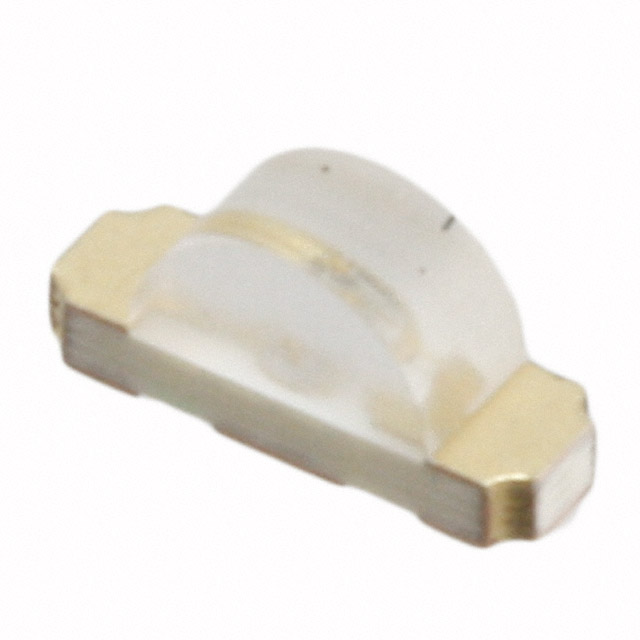

The SM1204SPGC is a surface-mount LED from Bivar Inc., housed in a 1204 (3210 metric) package with a right-angle configuration. It emits green light at a wavelength of 525 nm, featuring a water-clear lens and a viewing angle of 110 degrees. The component operates with a forward current of 20 mA and a forward voltage of 3.3 V, delivering an optical intensity of 285 mcd. Power dissipation is rated at 78 mW.

LED Indication - Discrete Feature Summary

• Right-angle surface-mount design for space-constrained PCB layouts
• Water-clear lens material to maximize light transmission efficiency
• Green emission spectrum optimized for standard visual indication tasks

LED Indication - Discrete Applications

• Electronic device status indicators
• Control panel illumination
• Consumer appliance signaling

LED Indication - Discrete Procurement Notes

Verify availability as this specific part number is listed as obsolete and no longer manufactured by the supplier. Confirm if the manufacturer has issued a formal end-of-life notification or product change notice prior to finalizing procurement plans. Ensure that any substitute components meet identical electrical and mechanical specifications to maintain system reliability.

LED Indication - Discrete Selection Notes

Select this component when a right-angle LED form factor is required within a 1204 footprint constraint. Consider the 3.3 V forward voltage drop for circuit design compatibility. Evaluate the 285 mcd brightness level against ambient lighting conditions to ensure adequate visibility for the intended application without requiring excessive drive current.

LED Indication - Discrete Part Context

This component belongs to Bivar's 1204 series of surface-mount LEDs, which utilizes a standardized 3210 metric package size. The series offers various color options and mounting orientations, including standard and right-angle configurations. The SM1204SPGC specifically addresses applications needing directional green indication in compact electronic assemblies.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not explicitly provided in the available documentation. Users should consult the manufacturer's official cross-reference guides or contact technical support directly for validated equivalent components.
