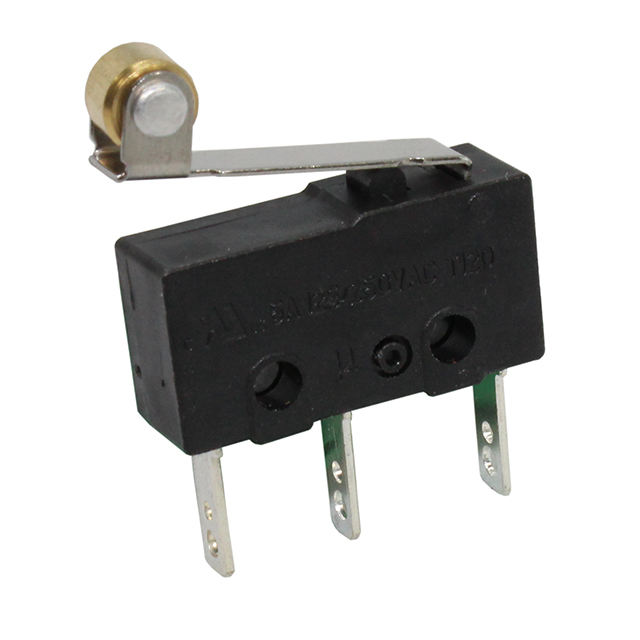

Limit Switches SM3CQF0801L03 product image

SM3CQF0801L03

$1.26
  • Description：SWITCH LIMIT SPDT 5A 125V
  • Series：SM3
  • Mfr：CIT Relay and Switch
  • Package：Bag

SKU:58f4facdcbf8 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

SM3CQF0801L03 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SM3CQF0801L03

  • Description：SWITCH LIMIT SPDT 5A 125V
  • Series：SM3
  • Mfr：CIT Relay and Switch
  • Package：Bag
  • Circuit：SPDT
  • Switch Function：On-Mom
  • Current Rating (Amps)：5A (AC)
  • Voltage Rating - AC：125 V
  • Actuator Type：Lever, Roller
  • Mounting Type：Chassis Mount
  • Termination Style：Quick Connect - 0.110" (2.8mm)
  • Ingress Protection：-
  • Features：-
  • Operating Force：18gf
  • Release Force：5.000gf
  • Operating Position：0.646" (16.4mm)
  • Pretravel：0.161" (4.1mm)
  • Differential Travel：0.031" (0.80mm)
  • Overtravel：0.039" (1.0mm)
  • Operating Temperature：-40°C ~ 120°C
  • Voltage Rating - DC：-

Limit Switches datasheet and documents for SM3CQF0801L03

SM3CQF0801L03
