SML-LX15IGC-RP-TR

LED Indication - Discrete Overview

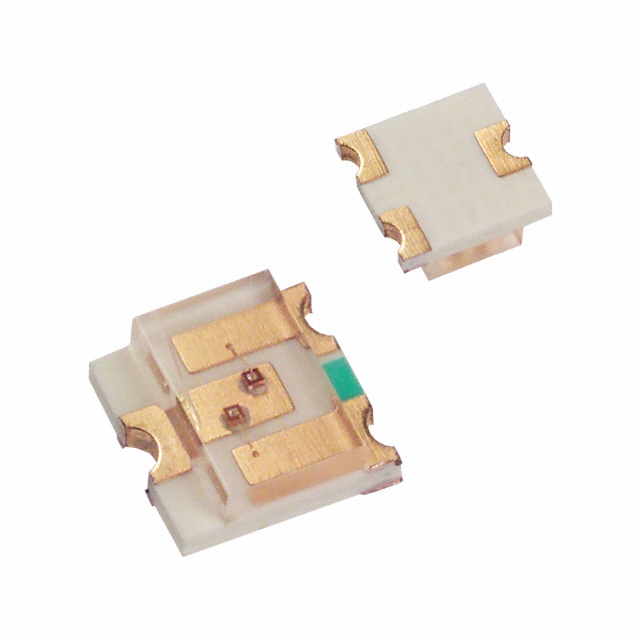

The SML-LX15IGC-RP-TR is a dual-color surface-mount LED from Lumex Opto/Components Inc., featuring red and green emitters within a single package. It utilizes a water-clear rectangular lens with dimensions of 3.00mm x 2.00mm and a maximum height of 1.00mm. The component operates at a standard forward current of 20mA for both colors, with typical forward voltages of 2V for the red emitter and 2.2V for the green emitter. Peak wavelengths are specified at 635nm for red and 565nm for green, providing distinct color output suitable for status indication applications.

LED Indication - Discrete Feature Summary

• Integrates independent red and green light-emitting diodes into a compact dual-package structure
• Utilizes a water-clear rectangular lens to maximize optical transmission efficiency
• Supports standard surface-mount technology (SMT) assembly processes

LED Indication - Discrete Applications

• Electronic device status indicators
• Multi-state signaling in control panels
• Consumer electronics interface lighting

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the SML-LX15IGC-RP-TR to confirm environmental compliance and moisture sensitivity levels prior to procurement. Ensure that the ordering suffix matches the required tape-and-reel packaging configuration. Cross-reference the manufacturer's latest documentation to validate electrical characteristics against your circuit design requirements.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require two distinct indicator colors within a single footprint. Consider the combined thermal dissipation of both emitters if operating simultaneously. Verify that the forward voltage requirements align with the available drive voltage in the target application circuit.

LED Indication - Discrete Part Context

This part belongs to the Lumex SMD LED family, designed for high-reliability surface-mount applications. The series offers various color combinations and lens options to meet diverse visual signaling needs. The specific model integrates standard red and green spectra commonly used for power and activity status representation.

LED Indication - Discrete Replacement Considerations

Direct replacement parts should be sourced from the Lumex SML-LX15 series or equivalent dual-color SMD LEDs with matching 3030 package dimensions. Verify pinout compatibility and spectral alignment before substitution.
