SMLZN4EGTT86A

LED Indication - Discrete Overview

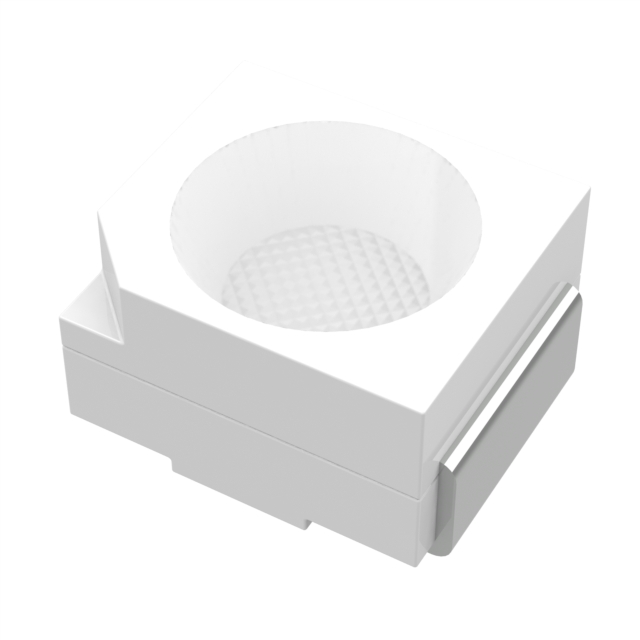

The SMLZN4EGTT86A is a single-color green LED from ROHM Semiconductor, designed for surface-mount applications. It operates at a peak wavelength of 528 nm with a typical forward voltage of 3.4 V and a test current of 20 mA. The component features a 2-PLCC package measuring 3.2 mm by 2.8 mm, with a maximum height of 1.9 mm. It delivers a luminous intensity of 1.5 cd and has a power rating of 175 mW. The device supports a wide operating temperature range from -40°C to +100°C and includes moisture sensitivity classification.

LED Indication - Discrete Feature Summary

• High brightness chip LED with integrated reflector
• Standard 2-PLCC surface-mount package design
• Water clear lens with round flat shape

LED Indication - Discrete Applications

• Indicator lights for home appliances
• Status indicators in industrial equipment
• Visual signals in office equipment
• Display components in PC peripherals

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required optical and electrical parameters. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration. Check for any obsolescence notices or factory order restrictions directly with the manufacturer. Ensure ESD handling procedures are followed during storage and assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with high brightness is required in a compact surface-mount form factor. Consider the 3.4 V forward voltage drop for circuit design calculations. Evaluate the 2-PLCC footprint against available PCB space constraints. Compare luminous intensity requirements against alternative wavelengths if color accuracy is critical for the application.

LED Indication - Discrete Part Context

This part belongs to the SML-ZN series of single-color LEDs manufactured by ROHM Semiconductor. The series offers various colors and intensities within the same mechanical footprint. The SML-ZN4EGTT86A specifically provides green emission characteristics suitable for general-purpose indication tasks across consumer and industrial electronics markets.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other ROHM green LEDs in the 2-PLCC package such as the SML-Z14U4TT86 series variants. Cross-reference mechanical dimensions and spectral output before substitution. Verify that alternative parts meet the same thermal and electrical specifications for seamless integration.
