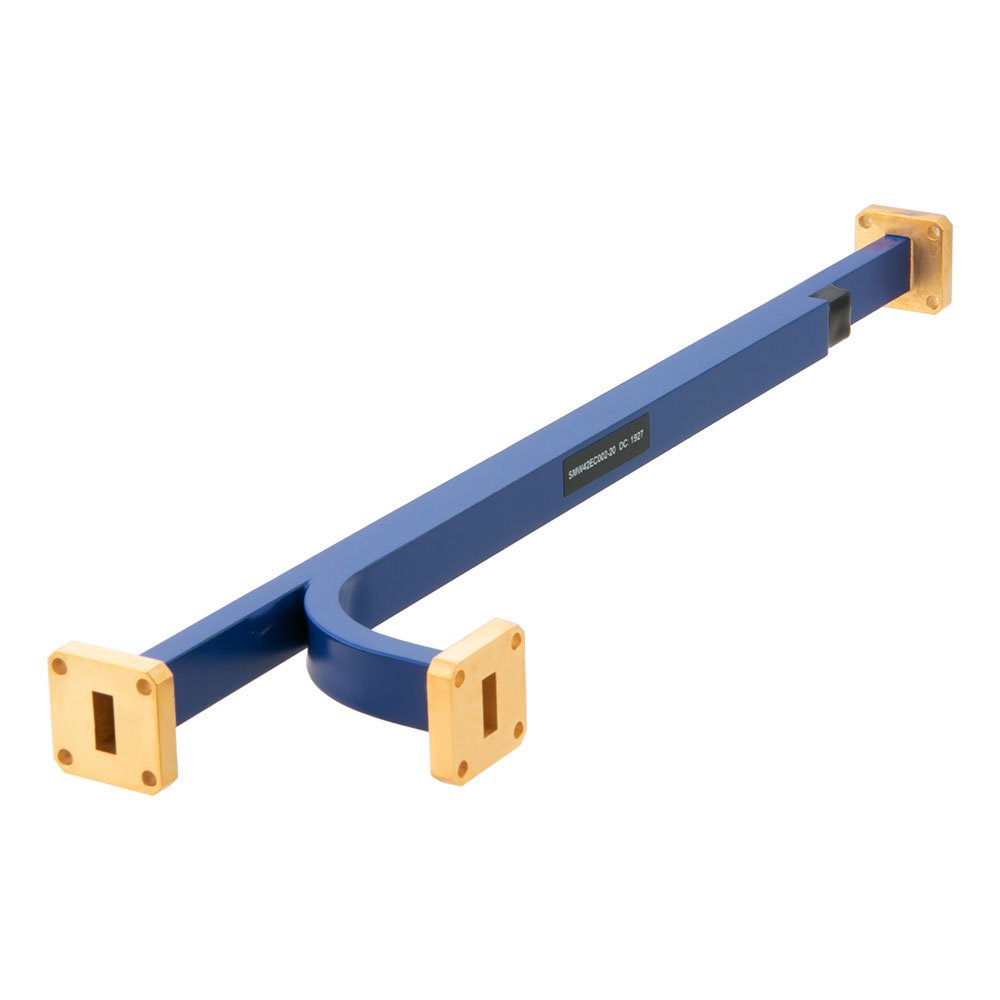

SMW42EC002-20

RF Directional Couplers Overview

The Fairview Microwave SMW42EC002-20 is a general-purpose RF directional coupler designed for WR-42 waveguide applications. It operates within a frequency range of 18 GHz to 26.5 GHz and provides a nominal coupling factor of 20 dB with a tolerance of ±0.8 dB. The component features a UG-595/U square cover flange interface and an E-plane coupled port. Constructed from brass copper, it serves as a signal conditioning module for high-frequency microwave systems requiring precise power sampling.

RF Directional Couplers Feature Summary

• Provides directional signal coupling in the WR-42 waveguide band
• Features an E-plane coupled port configuration
• Utilizes UG-595/U square cover flange interfaces

RF Directional Couplers Applications

• Microwave signal monitoring and sampling
• Power measurement systems
• RF test and measurement setups

RF Directional Couplers Procurement Notes

Verify the specific datasheet version for the SMW42EC002-20 to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with WR-42 waveguide standards and UG-595/U flange specifications before integration. Cross-reference the coupling factor tolerance of ±0.8 dB against system requirements. Confirm material composition details if environmental resistance is critical for the intended deployment scenario.

RF Directional Couplers Selection Notes

Select this component when a fixed 20 dB coupling ratio is required within the 18–26.5 GHz spectrum. The WR-42 form factor dictates physical integration constraints. Consider the E-plane port orientation for layout planning. This model is suitable for applications needing stable directional coupling without active components. Evaluate insertion loss and directivity specifications from the official documentation for precision needs.

RF Directional Couplers Part Context

This part belongs to the Fairview Microwave series of waveguide passive components. It complements other WR-42 accessories such as bends, tees, and flexible sections. The product line focuses on brass copper construction for durability and conductivity. It supports standard industrial and defense microwave interconnect requirements.

RF Directional Couplers Replacement Considerations

SMW42EC001-20 is a confirmed substitute offering identical 20 dB coupling and frequency range. Verify flange type consistency between models during replacement.
