SNA-01-000

Power Line Filter Modules Overview

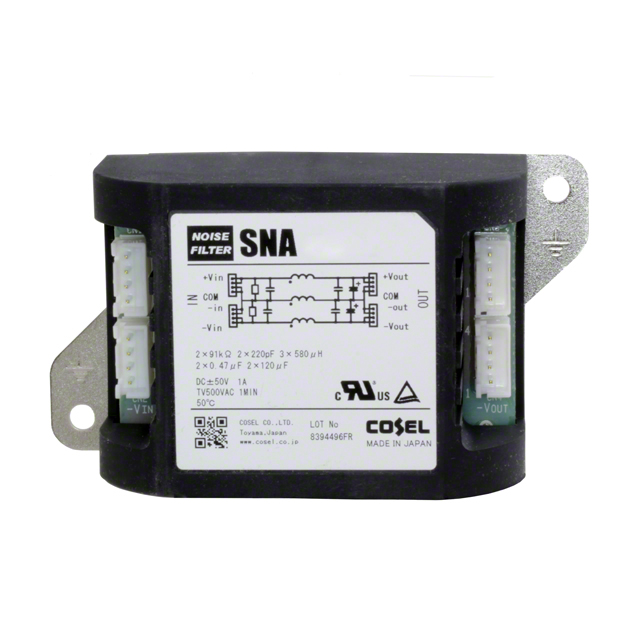

The SNA-01-000 is a DC EMC/EMI line filter module manufactured by Cosel USA, Inc. It features a single-stage configuration designed for noise suppression in 50V DC circuits with a current rating of 1 A. The unit supports chassis mounting and operates within a temperature range of -40°C to 71°C. This component serves as a general-purpose power line filter for electronic systems requiring reliable signal integrity.

Power Line Filter Modules Feature Summary

• Single-stage DC EMC/EMI filtering architecture
• Chassis mount installation style
• General-purpose noise suppression capability

Power Line Filter Modules Applications

• DC power supply input filtering
• Electronic equipment noise reduction
• Industrial control system power conditioning

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and physical dimensions against your enclosure design before procurement. Confirm that the chassis mounting requirements align with your assembly process. Ensure the 1 A current rating and 50 VDC voltage limit meet your circuit specifications. Check for any regional compliance documentation updates relevant to your deployment location.

Power Line Filter Modules Selection Notes

Select this model when a single-stage DC filter is required for low-current applications up to 1 A. It is suitable for chassis-mounted installations where space allows for direct panel attachment. Consider the operating temperature range of -40°C to 71°C for environmental compatibility. Compare with the SNA-03 series if higher current capacity or DIN rail mounting is needed instead.

Power Line Filter Modules Part Context

This component belongs to the SNA series of power line filters from Cosel USA, Inc. The series includes variants with different current ratings and mounting options, such as the SNA-03 series which offers DIN rail mounting. The SNA-01-000 specifically addresses the need for compact, chassis-mounted DC filtering solutions in general-purpose electronics.

Power Line Filter Modules Replacement Considerations

The SNA-01-000-D is a related variant within the same product family. Verify if the suffix indicates a specific connector or packaging difference that affects your integration. No other direct substitute part numbers are publicly confirmed for this specific model.
