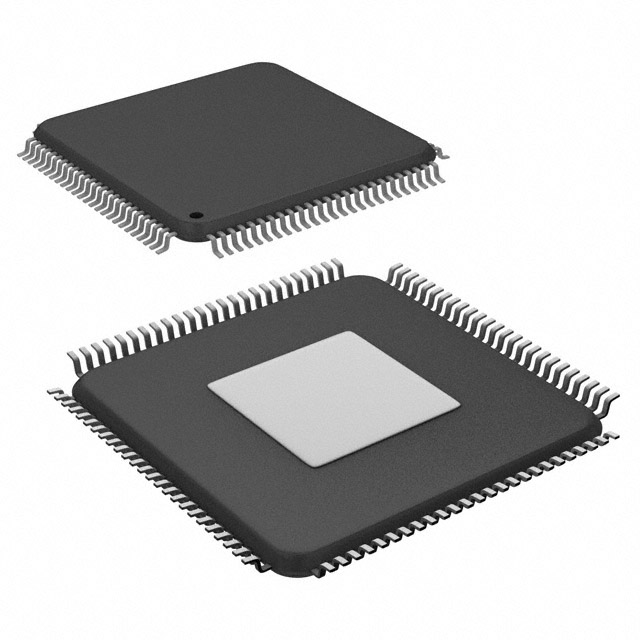

SPC584C70E3FMC0X

$11.99

Description：IC MCU 32BIT 2MB FLASH 100ETQFP
Series：SPC58
Mfr：STMicroelectronics
Package：Tape & Reel (TR)
Core Processor：e200z420

SKU:036a59995b63 Category: Microcontrollers Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPC584C70E3FMC0X is listed in the Microcontrollers range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is IC MCU 32BIT 2MB FLASH 100ETQFP. Review the specifications below when checking this part for your BOM.

Microcontrollers specifications for SPC584C70E3FMC0X

Description：IC MCU 32BIT 2MB FLASH 100ETQFP
Series：SPC58
Mfr：STMicroelectronics
Package：Tape & Reel (TR)
Core Processor：e200z420
Core Size：32-Bit Single-Core
Speed：180MHz
Connectivity：CANbus, Ethernet, I2C, LINbus, SPI, UART/USART
Peripherals：DMA
Number of I/O：80
Program Memory Size：2MB (2M x 8)
Program Memory Type：FLASH
EEPROM Size：64K x 8
RAM Size：128K x 8
Voltage - Supply (Vcc/Vdd)：3.3V, 5V
Data Converters：A/D - 10b SAR, 12b SAR
Oscillator Type：Internal
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：100-eTQFP (14x14)
Package / Case：100-TQFP Exposed Pad
Grade：Automotive
Qualification：AEC-Q100

Microcontrollers datasheet and documents for SPC584C70E3FMC0X

SPC584C70E3FMC0X

Microcontrollers Overview

The SPC584C70E3FMC0X is a 32-bit Power Architecture microcontroller from the SPC58 C Line, designed for automotive general-purpose applications. It features dual e200z420n3 cores operating at up to 180 MHz with Variable Length Encoding (VLE). The device includes 4096 KB code flash and 128 KB data flash, alongside 384 KB on-chip SRAM. It supports ASIL-B safety concepts, AEC-Q100 qualification, and offers extensive connectivity including LINFlexD, MCAN, FlexRay, and Ethernet.

Microcontrollers Feature Summary

Dual high-performance e200z420n3 cores with single-precision floating point support
Comprehensive ASIL-B safety concept with FCCU and MEMU
Extensive communication interfaces including CAN-FD, FlexRay, and Ethernet
Hardware Security Module (HSM) with cryptographic co-processor

Microcontrollers Applications

Automotive body control modules
General purpose automotive applications requiring ASIL-B compliance
Powertrain and chassis systems

Microcontrollers Procurement Notes

Verify the specific ordering suffix FMC0X against the official STMicroelectronics datasheet DS11620 to confirm package type and temperature grade. Ensure compatibility with existing design constraints regarding the eTQFP100 package dimensions and pinout configuration before finalizing procurement.

Microcontrollers Selection Notes

Select this component when dual-core processing power combined with ASIL-B functional safety is required. It is suitable for designs needing robust connectivity options like FlexRay and Ethernet. Consider the 4 MB flash capacity and 384 KB RAM for complex application logic and data storage needs in automotive environments.

Microcontrollers Part Context

This part belongs to the SPC584Cx family, which supersedes the SPC564Cx series. It utilizes a 40 nm process technology to deliver higher throughput and improved power efficiency. The family integrates advanced safety features and a rich set of peripherals tailored for demanding automotive electronic control unit applications.
