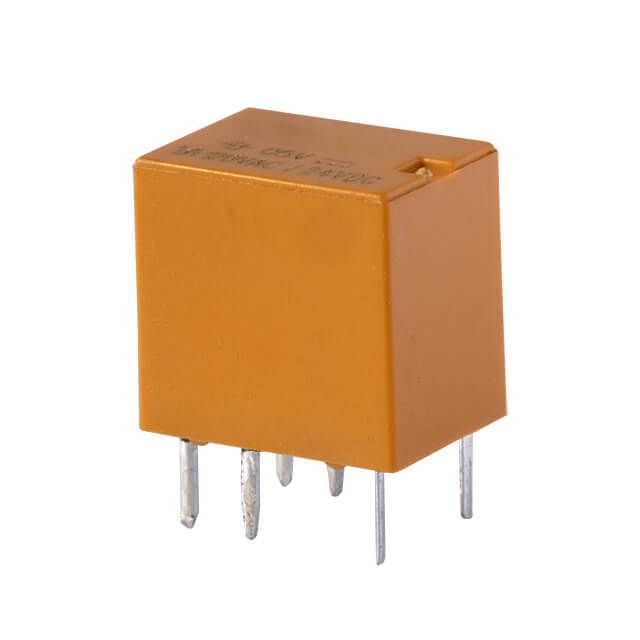

SR1-3V-450-1C

SR1-3V-450-1C is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is RELAY GENERAL PURPOSE SPDT 1A 3V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for SR1-3V-450-1C

• Description：RELAY GENERAL PURPOSE SPDT 1A 3V
• Series：SR1
• Mfr：Same Sky (Formerly CUI Devices)
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：3VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：120VAC, 24VDC - Max
• Load - Max Switching：120VA, 24W
• Coil Current：150 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：2.1 VDC
• Must Release Voltage：0.3 VDC
• Operate Time：6 ms
• Release Time：4 ms
• Operating Temperature：-25°C ~ 70°C
• Contact Material：Silver (Ag), Gold (Au)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for SR1-3V-450-1C
