SRN6045TA-471K

Fixed Inductors Overview

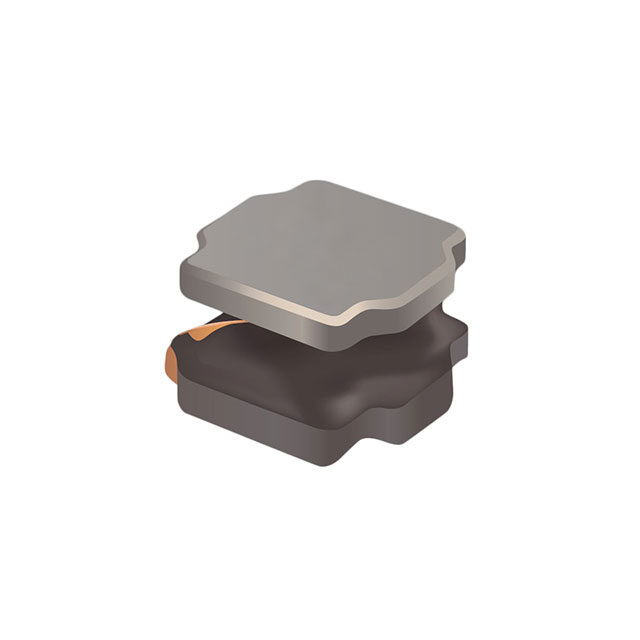

The Bourns SRN6045TA-471K is a semi-shielded, wirewound power inductor from the SRN6045TA series. It features a ferrite core and offers an inductance of 470 µH with ±10% tolerance. The component supports a maximum DC current (Idc) of 0.4 A and a saturation current (Isat) of 0.5 A. Its maximum DC resistance is 2.46 Ω, with a minimum quality factor of 15 at 1 MHz. The package dimensions are 6 mm x 6 mm x 4.2 mm, operating between -55°C and +125°C.

Fixed Inductors Feature Summary

• Semi-shielded construction utilizing fly-wheel technology to minimize magnetic radiation.
• Wirewound design on a ferrite core for stable performance in power applications.
• RoHS compliant and lead-free manufacturing process.

Fixed Inductors Applications

• DC/DC converter circuits
• Portable electronic devices
• Digital video equipment

Fixed Inductors Procurement Notes

Verify the specific suffix against the manufacturer's latest datasheet to confirm electrical parameters and availability. Ensure the selected variant matches the required current ratings and physical footprint for the target PCB layout. Cross-reference part numbers with official Bourns documentation to avoid substitution errors.

Fixed Inductors Selection Notes

Select this component when a compact 6x6 mm footprint is required with moderate current handling capabilities up to 0.4 A. The semi-shielded design is suitable for applications needing reduced electromagnetic interference compared to unshielded types. Verify that the 2.46 Ω DCR meets the efficiency requirements of the power supply design.

Fixed Inductors Part Context

This part belongs to the SRN6045TA series of semi-shielded power inductors by Bourns Inc. The series provides various inductance values within the 6045 package size, catering to different current and impedance needs. These components are designed for surface mount assembly in space-constrained electronics.

Fixed Inductors Replacement Considerations

Direct substitutes include other Bourns SRN6045TA variants with matching 470 µH inductance and similar current ratings. Verify pin compatibility and thermal characteristics before replacing with components from other manufacturers.
