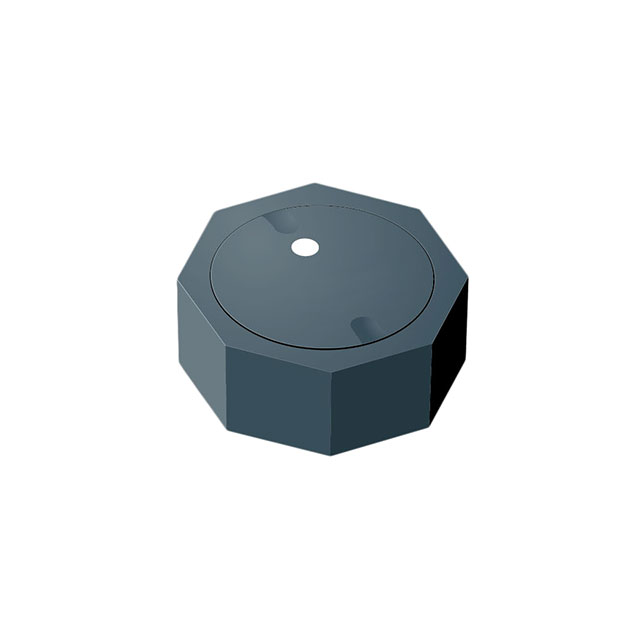

SRU1063A-101Y

$0.89

Description：FIXED IND 100UH 1.1A 320MOHM SMD
Series：SRU1063A
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:20b7af776a2f Category: Fixed Inductors Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SRU1063A-101Y is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 100UH 1.1A 320MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SRU1063A-101Y

Description：FIXED IND 100UH 1.1A 320MOHM SMD
Series：SRU1063A
Mfr：Bourns Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：100 µH
Tolerance：±30%
Current Rating (Amps)：1.1 A
Current - Saturation (Isat)：1.2A
Shielding：Shielded
DC Resistance (DCR)：320mOhm Max
Q @ Freq：12 @ 796kHz
Frequency - Self Resonant：4MHz
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：4-SMD
Supplier Device Package：-
Size / Dimension：0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)：0.268" (6.80mm)
Features：-

Fixed Inductors datasheet and documents for SRU1063A-101Y

SRU1063A-101Y

Fixed Inductors Overview

The Bourns SRU1063A-101Y is a shielded surface-mount power inductor from the SRU1063A series, designed for automotive and industrial applications. It features an inductance of 100 µH with a tolerance of ±30%. The component supports a maximum DC current of 1.1 A and a saturation current of 1.2 A. Its maximum DC resistance is 320 mΩ. The unit measures 10 mm x 10 mm x 6.5 mm and utilizes a ferrite core with wirewound construction. It operates within a temperature range of -40°C to +125°C and has a minimum Q factor of 12 at a test frequency of 2.52 MHz.

Fixed Inductors Feature Summary

Shielded drum core design minimizes electromagnetic interference
Automotive grade reliability compliant with AEC-Q200 standards
High thermal stability suitable for demanding environments

Fixed Inductors Applications

Driver assistance systems
Infotainment circuits
Power delivery networks

Fixed Inductors Procurement Notes

Verify the specific ordering suffix 'Y' corresponds to the required tape and reel packaging configuration. Confirm that the AEC-Q200 qualification status meets the target application's automotive grade requirements. Ensure the physical footprint dimensions align with the PCB layout constraints. Cross-reference the manufacturer datasheet for any recent manufacturing site relocation notices affecting part availability or specifications.

Fixed Inductors Selection Notes

Select this component when a 100 µH inductance value is required in a compact 10x10 mm package. Consider the 1.1 A continuous current rating against the circuit's operational load. Evaluate the 320 mΩ DCR impact on overall efficiency. The shielded structure is essential for noise-sensitive designs. Verify compatibility with standard SMD reflow soldering profiles.

Fixed Inductors Part Context

This part belongs to the SRU1063A series of shielded power inductors manufactured by Bourns Inc. The series offers various inductance values ranging from 4.7 µH to 100 µH. These components are engineered for high-current applications requiring robust performance and low magnetic interference. The series is widely used in automotive electronics due to its compliance with strict automotive quality standards.
