SSCMANN150PGAA3

Pressure Sensors Transducers Overview

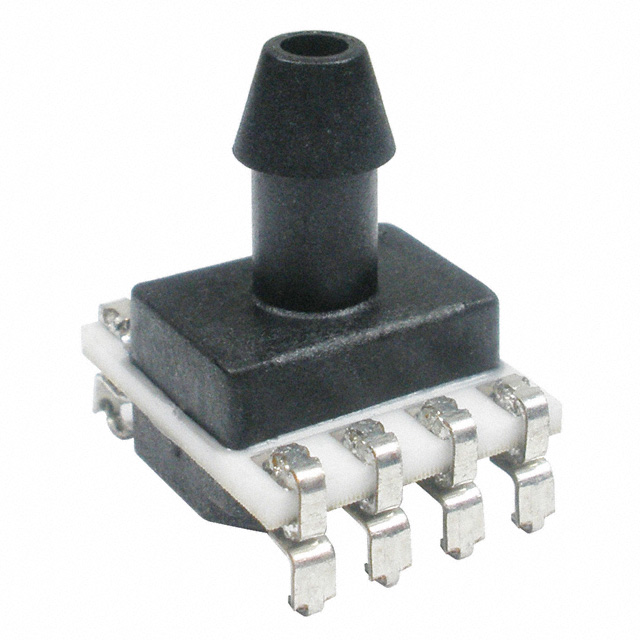

The SSCMANN150PGAA3 is a board-mount pressure sensor from Honeywell’s TruStability SSC series. It features an analog voltage output ranging from 0.33V to 2.97V, powered by a 3V supply with a maximum of 3.3V. The device measures gauge pressure up to 150 psi (1034.21 kPa) with an accuracy of 2%. Designed for surface mount technology, it utilizes an 8-SMD J-Lead package with a top port and single axial barbed connection. Operating temperatures range from -20°C to +85°C, consuming 1.6 mA.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning with temperature compensation
• Surface mount design for automated assembly
• Single axial barbed port configuration

Pressure Sensors Transducers Applications

• Industrial automation systems
• HVAC monitoring equipment
• Medical gas delivery devices

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix against official datasheets to confirm pinout and port orientation compatibility. Confirm RoHS compliance status and moisture sensitivity level requirements prior to PCB layout finalization. Ensure supply chain sources provide valid traceability documentation for quality assurance protocols.

Pressure Sensors Transducers Selection Notes

Select this component when a compact surface mount solution is required for high-pressure gauge applications. The 150 psi range suits pneumatic systems requiring moderate precision. Evaluate the 2% accuracy specification against system tolerance requirements before integration into critical control loops.

Pressure Sensors Transducers Part Context

This model belongs to the TruStability SSC family, characterized by silicon piezoresistive technology. It shares common interface standards with other sensors in the series but differs in pressure rating and package type. The SMT form factor distinguishes it from through-hole SIP variants within the same product line.

Pressure Sensors Transducers Replacement Considerations

SSCMANV150PGAA5 offers similar performance with a 5V supply requirement and different package dimensions. Verify electrical compatibility and mechanical footprint differences before substitution.
