SSL-DSP5093SIC

LED Indication - Discrete Overview

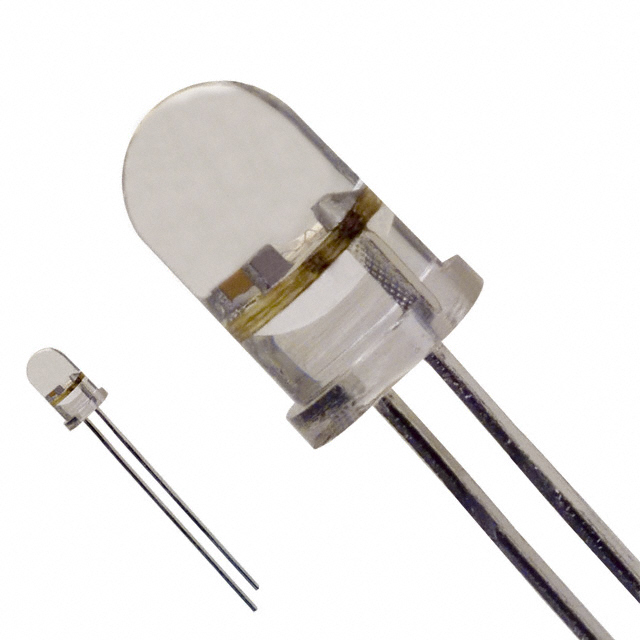

The SSL-DSP5093SIC is a single-color, through-hole LED indicator manufactured by Lumex Opto/Components Inc. It features a 5mm round, water-clear lens and emits red light with a peak wavelength of 610 nm. The component operates at a forward voltage of approximately 1.5V to 2V and delivers a luminous intensity of 1.8 cd to 2500 mcd at 20mA. Designed for radial mounting, it functions within a temperature range of -40°C to 85°C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Single-color red emission with a water-clear lens for high visibility
• Radial through-hole mounting configuration for standard PCB integration
• RoHS compliant lead-free construction ensuring environmental safety

LED Indication - Discrete Applications

• Panel status indicators in electronic equipment
• Power supply state signaling
• General-purpose visual indication in control systems

LED Indication - Discrete Procurement Notes

Verify the obsolete status of this specific part number before procurement planning. Confirm availability of alternative colors or updated series from Lumex if current stock is unavailable. Ensure that the replacement component matches the required forward voltage and luminous intensity specifications for your application design.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm red LED with a clear lens is required for through-hole assembly. Consider the operating temperature range and forward voltage characteristics to ensure compatibility with the driving circuit. Verify that the physical dimensions and pin spacing meet the PCB layout requirements.

LED Indication - Discrete Part Context

This discrete LED belongs to Lumex's SSL series of optical components. It serves as a basic visual indicator element within larger electronic assemblies. The product line focuses on providing reliable, cost-effective lighting solutions for industrial and consumer applications requiring simple status feedback.

LED Indication - Discrete Replacement Considerations

Public sources indicate the SSL-DSP5093SIC is obsolete. Potential substitutes include the SSL-LX5093SIC or other compatible 5mm red LEDs from Lumex. Verify electrical parameters and mechanical fit before substitution.
