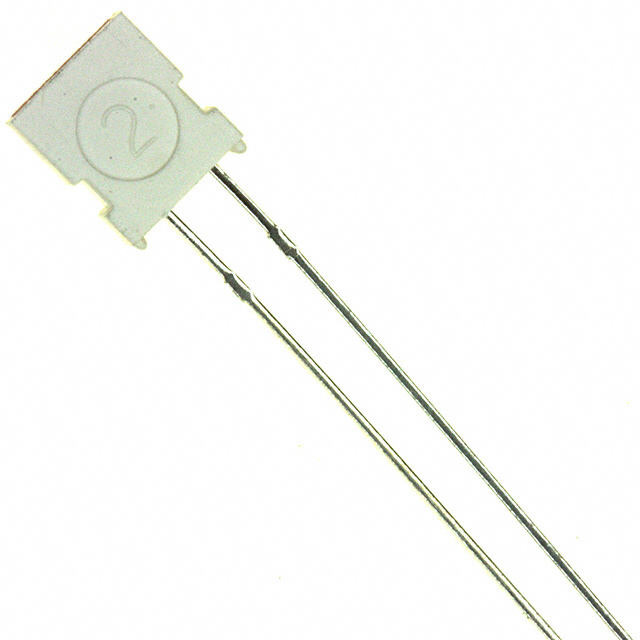

SSL-LX4673SRD-LA20

$0.85

Description：LED RED DIFF RECT 4MMX7MM T/H
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk

SKU:dfb30ce25181 Category: LED Indication - Discrete Brand: Lumex Opto/Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSL-LX4673SRD-LA20 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lumex Opto/Components Inc.. Its product description is LED RED DIFF RECT 4MMX7MM T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SSL-LX4673SRD-LA20

Description：LED RED DIFF RECT 4MMX7MM T/H
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Diffused
Millicandela Rating：60mcd
Lens Style：Rectangle with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：1.7V
Current - Test：20mA
Viewing Angle：100°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：660nm
Features：-
Package / Case：Radial
Supplier Device Package：Rectangular 4mmx7mm
Size / Dimension：6.15mm L x 3.65mm W
Height (Max)：6.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SSL-LX4673SRD-LA20

SSL-LX4673SRD-LA20

LED Indication - Discrete Overview

The SSL-LX4673SRD-LA20 is a single-color LED manufactured by Lumex Opto/Components Inc. It features a rectangular lens measuring 4 mm x 7 mm with a diffused yellow appearance. The component operates at a peak wavelength of 585 nm and provides a nominal light intensity of 6 mcd. Electrical characteristics include a forward voltage of 2.1 V and a maximum forward current of 20 mA, resulting in a power rating of 105 mW. Designed for through-hole mounting, the device has a total height of 6.8 mm and is supplied in bulk packaging.

LED Indication - Discrete Feature Summary

Rectangular 4mm x 7mm lens geometry
Diffused yellow lens transparency
Through-hole radial mount configuration

LED Indication - Discrete Applications

Panel indicator illumination
Control station status signaling
Instrumentation front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix LA20 against the manufacturer's official datasheet to confirm lens treatment and binning specifications. Ensure the ordering part number matches the exact electrical and mechanical requirements for the target application before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a rectangular form factor with diffused optics is required for visual clarity. Consider the 20 mA forward current limit and 2.1 V forward voltage drop during circuit design to ensure appropriate current limiting resistors are utilized for reliable operation.

LED Indication - Discrete Part Context

This part belongs to Lumex's standard through-hole LED series, characterized by robust construction and standardized pin spacing. The SSL-LX4673 variant specifically addresses applications requiring larger surface area emitters compared to traditional T-1 or T-1-3/4 packages, offering enhanced visibility in industrial environments.
