SX3M2.048A10F20TNN

Oscillators Overview

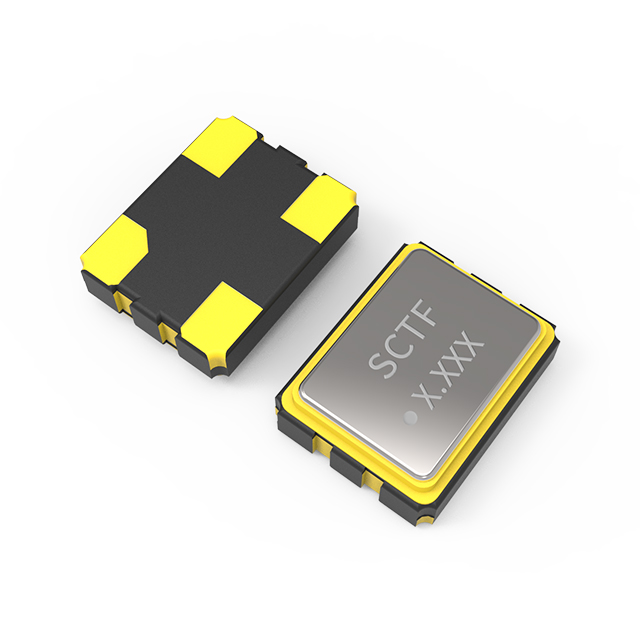

The SX3M2.048A10F20TNN is a 2 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It utilizes CMOS output technology and features a standard form factor. The device operates with a 5V supply voltage and includes an enable/disable control function. It is housed in a compact 4-SMD, No Lead package suitable for surface mount applications.

Oscillators Feature Summary

• CMOS output signal generation
• Integrated enable and disable control functionality
• Standard frequency stability design

Oscillators Applications

• General purpose clock signal generation
• Digital circuit timing references
• Embedded system clock sources

Oscillators Procurement Notes

Verify the specific model suffix against official datasheets to confirm voltage and frequency parameters. Ensure the package type matches the target PCB footprint. Confirm the manufacturer origin is Shenzhen SCTF Electronics to guarantee component authenticity and performance specifications.

Oscillators Selection Notes

Select this component when a 2 MHz CMOS clock source with enable control is required. The 5V operating voltage must align with the system power rails. Consider the 4-SMD no-lead package for automated assembly processes and space-constrained designs requiring standard oscillator profiles.

Oscillators Part Context

This part belongs to the SX3M series of oscillators from Shenzhen SCTF Electronics. The series offers various frequencies and packages. This specific model provides a 2 MHz output with CMOS logic levels, designed for reliable timing in electronic systems requiring precise clock synchronization.

Oscillators Replacement Considerations

The SX3M2.000A10F20TNN is a similar variant within the same series but operates at 2.000 MHz instead of 2 MHz. Verify frequency requirements before substitution. Other models may differ in voltage or package type.
