SX5DF125.000B20F30PNN

Oscillators Overview

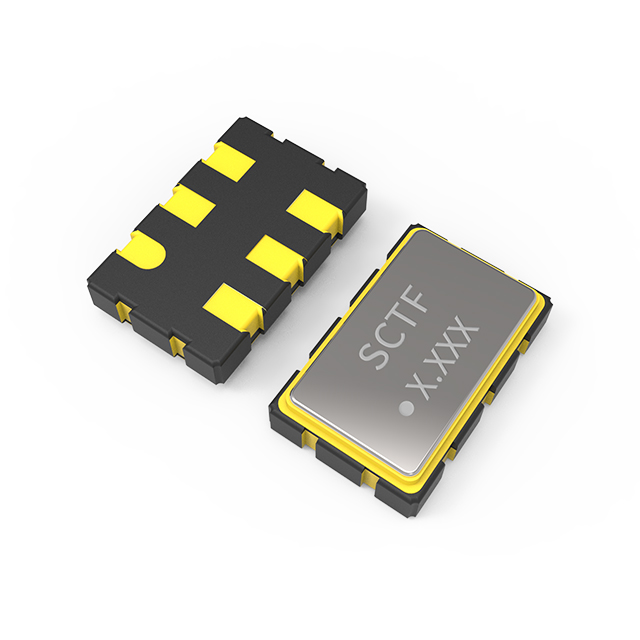

The SX5DF125.000B20F30PNN is a 125 MHz crystal oscillator (XO) manufactured by Shenzhen SCTF Electronics. It operates at a supply voltage of 3.3V and features LVPECL output mode. The component exhibits a frequency stability of ±20ppm and a load current of 70mA. It is housed in a 6-SMD, no-lead package with dimensions corresponding to the SMD5032-6P form factor.

Oscillators Feature Summary

• Delivers low jitter differential signals via LVPECL output interface for high-speed data transmission integrity.
• Operates within an extended industrial temperature range from -40°C to +85°C for reliable performance.
• Utilizes a compact 6-SMD surface-mount package design suitable for space-constrained PCB layouts.

Oscillators Applications

• High-speed serial communication interfaces requiring precise clocking
• Data acquisition systems needing stable timing references
• Telecommunications equipment utilizing differential signaling standards

Oscillators Procurement Notes

Verify the specific suffix PNN confirms the LVPECL output configuration against the official datasheet. Ensure the 3.3V supply requirement aligns with the target circuit design. Confirm the SMD5032-6P footprint matches the board layout specifications before finalizing procurement orders.

Oscillators Selection Notes

Select this model when LVPECL compatibility is required for the 125 MHz application. Consider the 70mA load current for power budget calculations. Evaluate the ±20ppm stability against system timing tolerance requirements. Compare the physical dimensions of the 6-SMD package with available board real estate constraints.

Oscillators Part Context

This part belongs to the SX5DF series of crystal oscillators from Shenzhen SCTF Electronics. The series offers various output modes including HCSL and LVDS. The SX5DF125.000B20F30PNN specifically provides the LVPECL variant, distinguishing it from other suffixes like HNN or DNN which offer different signal levels.

Oscillators Replacement Considerations

Direct substitutes include SX5DF125.000B20F30HNN for HCSL output or SX5DF125.000B20F30DNN for LVDS output if signal level differences are acceptable. Verify pinout compatibility and electrical characteristics before swapping between these variants.
