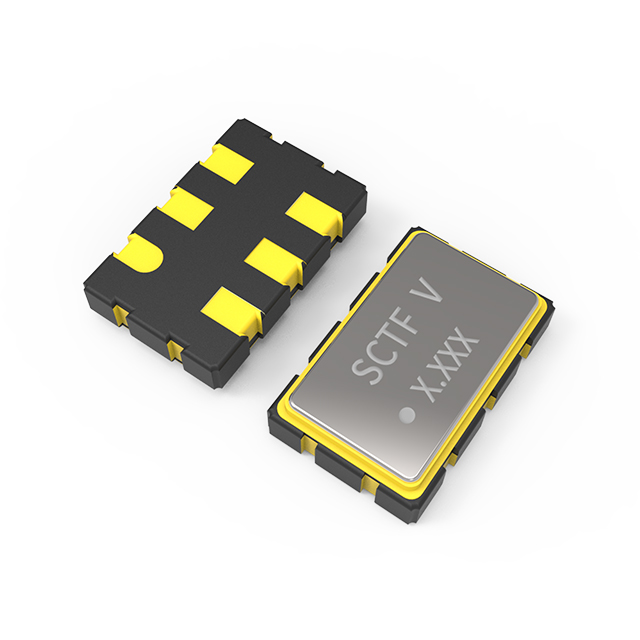

Oscillators SX5V24.5454B20100F30TNNS product image

SX5V24.5454B20100F30TNNS

$2.39

Description：XTAL OSC VCXO 24.5454MHZ CMOS
Series：5VA
Mfr：Shenzhen SCTF Electronics
Package：Tape & Reel (TR)

SKU:444d8dc537f4 Category: Oscillators Brand: Shenzhen SCTF Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SX5V24.5454B20100F30TNNS is listed in the Oscillators range at ChipApex. The manufacturer field lists Shenzhen SCTF Electronics. Its product description is XTAL OSC VCXO 24.5454MHZ CMOS. Review the specifications below when checking this part for your BOM.

Oscillators specifications for SX5V24.5454B20100F30TNNS

Description：XTAL OSC VCXO 24.5454MHZ CMOS
Series：5VA
Mfr：Shenzhen SCTF Electronics
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：VCXO
Frequency：24.5454 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：50ppm
Absolute Pull Range (APR)：±50ppm
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：10mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.049" (1.25mm)

Oscillators datasheet and documents for SX5V24.5454B20100F30TNNS
