SXO53C3C481-27.000M

Oscillators Overview

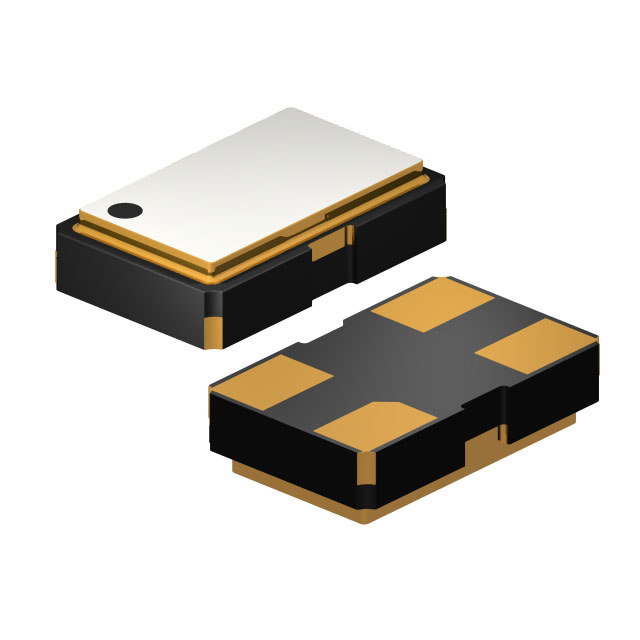

The SXO53C3C481-27.000M is a standard CMOS crystal oscillator manufactured by Suntsu Electronics, Inc. It operates at a nominal frequency of 27 MHz with a base resonator type of crystal. The device supports a supply voltage of 3.3V ±5% and features enable/disable functionality. It is housed in a 4-SMD, no lead package measuring 5.00mm x 3.20mm (0.197" L x 0.126" W). The component is designed for surface mount technology (SMT) and functions within an operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• CMOS output signal generation
• Enable/Disable control capability
• Crystal-based resonance stability

Oscillators Applications

• General electronic circuit timing
• Digital system clock sources
• Embedded microcontroller interfaces

Oscillators Procurement Notes

Verify the specific part number suffix against official Suntsu documentation to confirm exact electrical tolerances and packaging specifications. Ensure that the required operating temperature range and voltage levels match the design requirements before procurement. Cross-reference datasheet revisions to guarantee compatibility with current manufacturing standards.

Oscillators Selection Notes

Select this component when a 27 MHz CMOS clock source is required in a compact 5.00mm x 3.20mm footprint. Consider the 3.3V supply constraint and the -40°C to +85°C industrial temperature range during design integration. Verify that the enable/disable feature aligns with power management strategies in the target application.

Oscillators Part Context

This oscillator belongs to the SXO53C series from Suntsu Electronics, which offers various frequency options in a similar SMD form factor. The series utilizes crystal base resonators to provide stable frequency outputs. Other variants in the lineup may differ in frequency, voltage, or temperature ratings while maintaining comparable physical dimensions.

Oscillators Replacement Considerations

Direct substitutes include other 27 MHz CMOS oscillators in 5.00mm x 3.20mm packages from Suntsu, such as the SXO53C3C481-25.000M or SXO53C3C481-48.000M, provided the frequency difference is acceptable. Verify pinout and electrical characteristics before substitution.
