TAEP121

$7.76

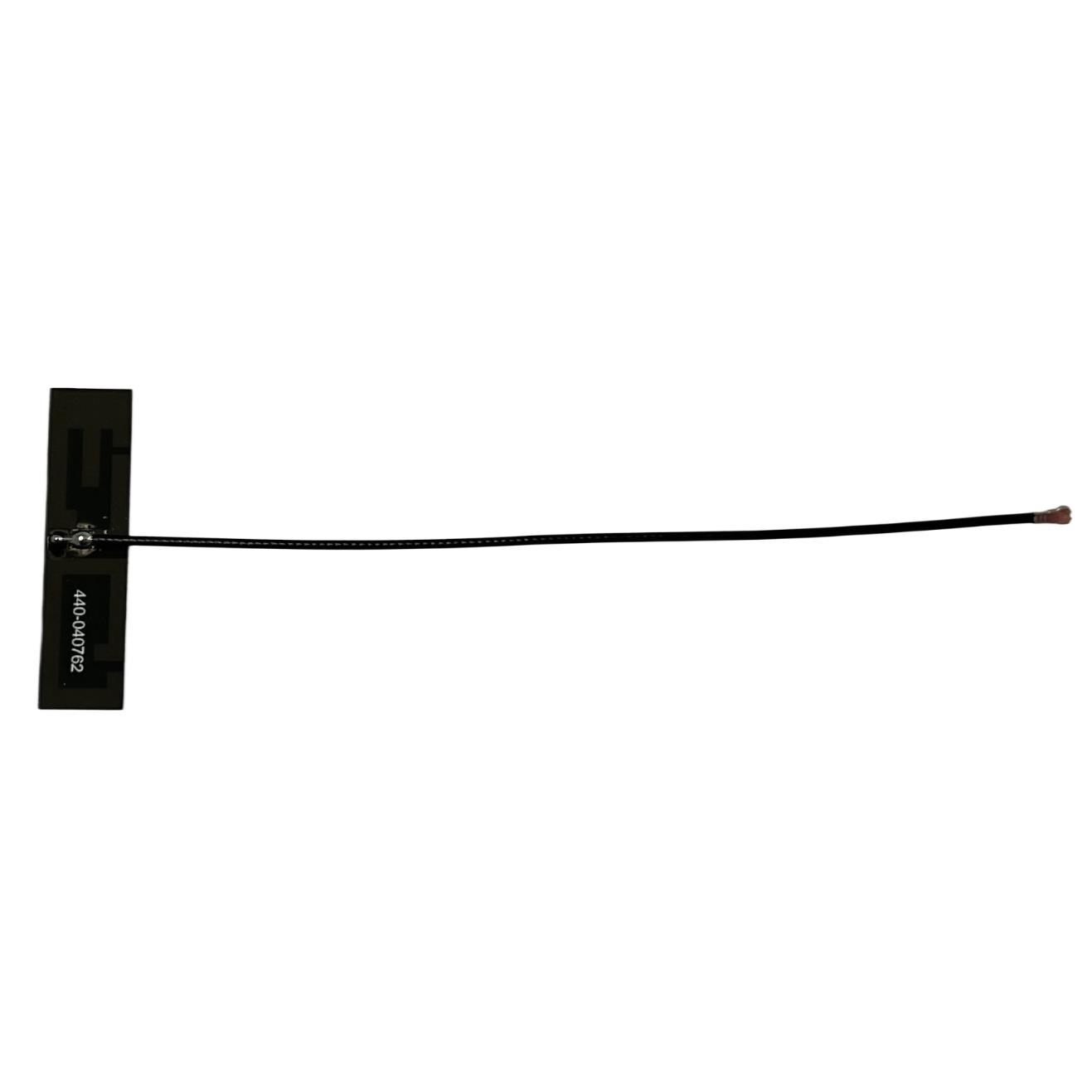

Description：WI-FI 6 INTERNAL OMNI ANTENNA
Series：-
Mfr：SkyMirr
Package：Bag

SKU:076525af5f28 Category: RF Antennas Brand: SkyMirr

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TAEP121 is listed in the Antennas RF range at ChipApex. The manufacturer field lists SkyMirr. Its product description is WI-FI 6 INTERNAL OMNI ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for TAEP121

Description：WI-FI 6 INTERNAL OMNI ANTENNA
Series：-
Mfr：SkyMirr
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz
Antenna Type：Flat Patch
Number of Bands：2
VSWR：-
Return Loss：-
Gain：1.67dBi, 1.9dBi
Features：Cable - 100mm
Termination：MHF1, MHF4
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：-
Applications：Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for TAEP121

TAEP121

Antennas RF Overview

The SkyMirr TAEP121 is a dual-band Wi-Fi 6 internal omnidirectional antenna designed for wireless communication applications. It operates across two frequency bands: 2.4GHz to 2.5GHz with a center frequency of 2.45GHz, and 5.1GHz to 5.9GHz with a center frequency of 5.5GHz. The antenna features a flat patch design and provides gains of 1.67dBi in the lower band and 1.9dBi in the upper band. It utilizes MHF1 and MHF4 connectors for interface connectivity.

Antennas RF Feature Summary

Supports Wi-Fi 6 standard for enhanced wireless performance
Dual-band operation covering 2.4GHz and 5GHz ISM bands
Compact flat patch form factor suitable for internal integration

Antennas RF Applications

Wi-Fi 6 router internal modules
Wireless access point assemblies
IoT gateway devices requiring dual-band connectivity

Antennas RF Procurement Notes

Verify connector compatibility (MHF1/MHF4) against target PCB layout before procurement. Confirm that the specified gain values meet system link budget requirements. Ensure the operating temperature range aligns with the final device environment. Request official datasheets to validate impedance matching characteristics.

Antennas RF Selection Notes

Select this component when a low-profile internal solution is required for dual-band Wi-Fi 6 systems. The flat patch design aids in space-constrained enclosures. Compare gain specifications against competing models to ensure adequate signal coverage. Verify cable length and connector type availability for seamless assembly integration.

Antennas RF Part Context

The TAEP121 belongs to SkyMirr's portfolio of internal RF antennas tailored for modern wireless standards. It addresses the need for compact, high-performance solutions in consumer electronics and networking hardware. The dual-band capability allows simultaneous or switched operation across common Wi-Fi frequencies.
