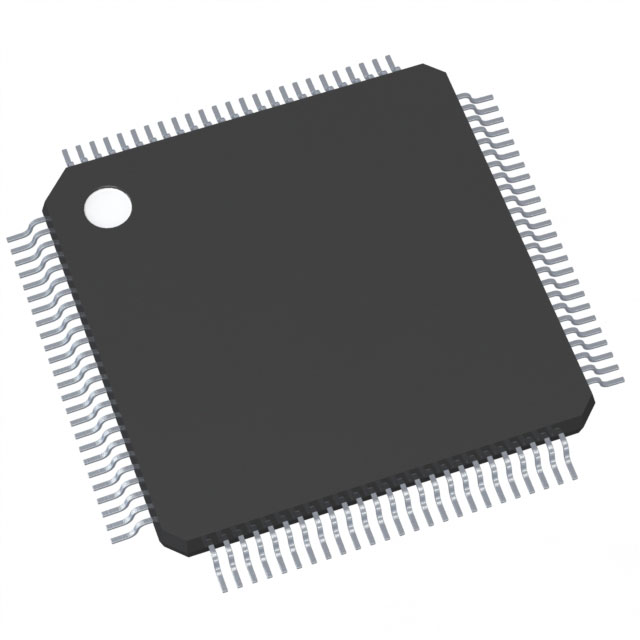

TC233L32F200FABKXUMA2

Description：IC MCU 32BIT 2MB FLASH 100TQFP
Series：AURIX™
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
Core Processor：TriCore™

SKU:4c3821c88810 Category: Microcontrollers Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TC233L32F200FABKXUMA2 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC MCU 32BIT 2MB FLASH 100TQFP. Review the specifications below when checking this part for your BOM.

Microcontrollers specifications for TC233L32F200FABKXUMA2

Description：IC MCU 32BIT 2MB FLASH 100TQFP
Series：AURIX™
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
Core Processor：TriCore™
Core Size：32-Bit Single-Core
Speed：200MHz
Connectivity：CANbus, FlexRay, LINbus, QSPI
Peripherals：DMA, PWM, WDT
Number of I/O：78
Program Memory Size：2MB (2M x 8)
Program Memory Type：FLASH
EEPROM Size：128K x 8
RAM Size：192K x 8
Voltage - Supply (Vcc/Vdd)：1.17V ~ 5.5V
Data Converters：A/D 24x12b SAR
Oscillator Type：External
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：PG-TQFP-100-23
Package / Case：100-TQFP Exposed Pad
Grade：-
Qualification：-

Microcontrollers datasheet and documents for TC233L32F200FABKXUMA2

TC233L32F200FABKXUMA2

Microcontrollers Overview

The TC233L32F200FABKXUMA2 is a TriCore AURIX microcontroller operating at 200 MHz with 2 MByte Flash and 192 kByte SRAM. It features 24 ADC lines, 6 CAN nodes, and supports ASIL-D/SIL-3 safety standards. The device includes a floating-point unit, real-time clock, and operates within -40°C to +125°C.

Microcontrollers Feature Summary

Integrated ASIL-D/SIL-3 functional safety support for automotive applications
Single-core TriCore processor with floating-point unit and DSP capabilities
Comprehensive connectivity including multiple CAN, FlexRay, LINbus, and QSPI interfaces

Microcontrollers Applications

Automotive powertrain control systems
Industrial motor control applications
Safety-critical embedded controller designs

Microcontrollers Procurement Notes

Verify the complete ordering code matches the specific suffix requirements for package type and temperature range. Confirm RoHS compliance status and check for any specific handling instructions related to the TQFP exposed pad package during assembly processes.

Microcontrollers Selection Notes

Select this component when high-integrity safety certification is required alongside moderate memory capacity. The single-core architecture suits cost-sensitive applications where lockstep redundancy is not mandatory but ASIL-D compliance remains essential for system validation.

Microcontrollers Part Context

This part belongs to the Infineon AURIX 1G family, designed for robust automotive and industrial environments. It provides a balance of processing performance and safety features, serving as a reliable solution for controllers requiring deterministic execution and fault tolerance.

Microcontrollers Replacement Considerations

Consult official documentation for direct pin-to-pin substitutes within the TC233 series. Ensure compatibility regarding flash size and peripheral availability before swapping components in existing hardware designs.
