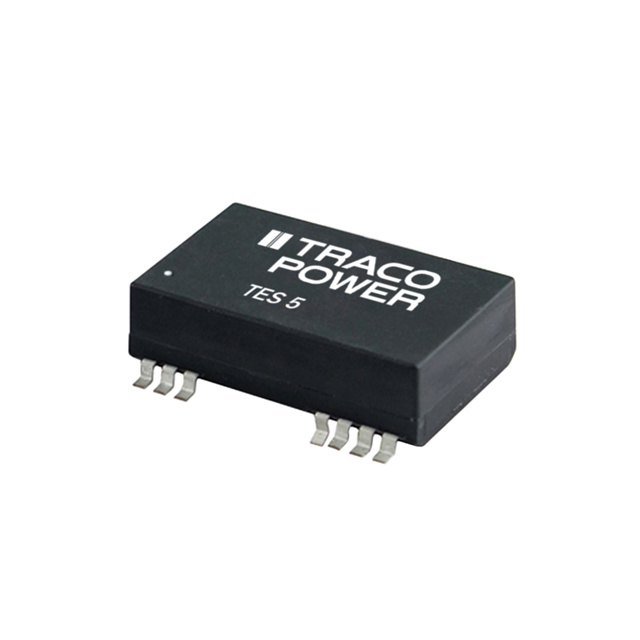

TES 5-2423

TES 5-2423 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TES 5-2423

• Description：DC DC CONVERTER +/-15V 5W
• Series：TES 5 (5W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：165mA, 165mA
• Power (Watts)：5 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 14 Leads
• Size / Dimension：1.31" L x 0.81" W x 0.40" H (33.4mm x 20.6mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TES 5-2423
