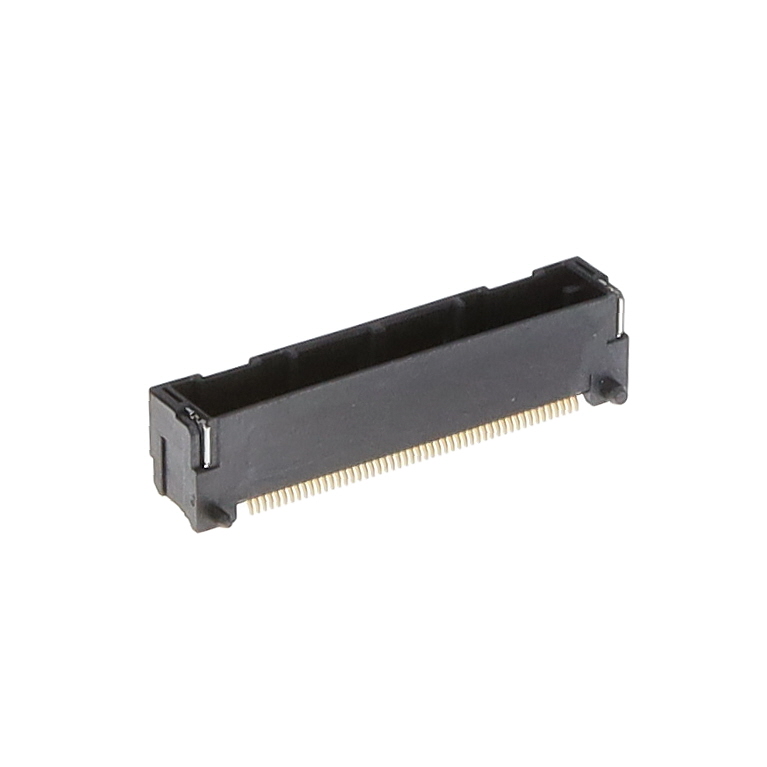

TF70-50S-0.5SH(800)

TF70-50S-0.5SH(800) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is RECEPTACLE 50POS 0.5MM PITCH. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for TF70-50S-0.5SH(800)

• Description：RECEPTACLE 50POS 0.5MM PITCH
• Series：TF70
• Mfr：Hirose Electric Co Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：50
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.222" (5.65mm)
• Locking Feature：-
• Cable End Type：Tabbed, Tapered
• Contact Material：-
• Contact Finish：-
• Housing Material：Polybutylene Terephthalate (PBT)
• Actuator Material：-
• Features：Board Guide
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：-

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for TF70-50S-0.5SH(800)
