TFCABLJANF-11.059200

Oscillators Overview

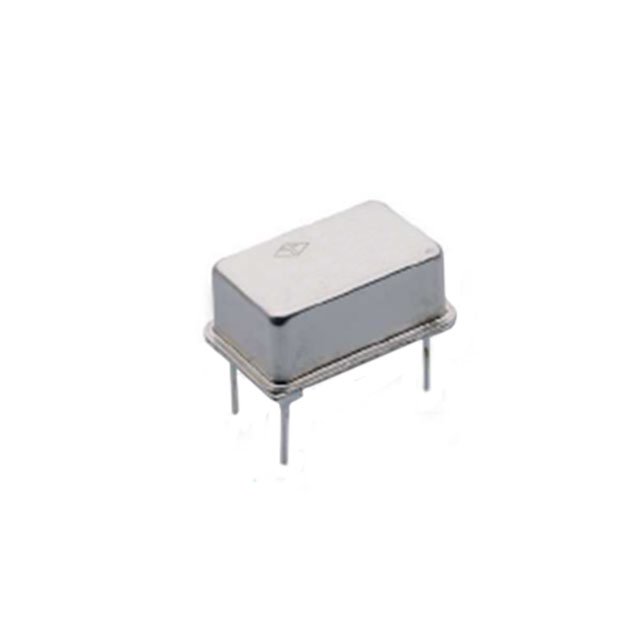

The Taitien TFCABLJANF-11.059200 is a Temperature Compensated Crystal Oscillator (TCXO) operating at 11.0592MHz with CMOS output mode. It functions on a 5V supply voltage and consumes 20mA of current. The unit provides a frequency stability of ±1ppm across an operating temperature range of -40℃ to +85℃. The component utilizes a half-size metal can package with 4 leads in an 8-DIP configuration, measuring 12.80mm in width and 20.40mm in length.

Oscillators Feature Summary

• Temperature compensation ensures high frequency stability of ±1ppm
• CMOS output interface for digital circuit compatibility
• Robust half-size metal can packaging for environmental protection

Oscillators Applications

• Precision timing circuits requiring stable clock signals
• Communication equipment utilizing serial data transmission
• Industrial control systems operating in variable temperatures

Oscillators Procurement Notes

Verify the specific package variant upon ordering, as distributor listings may reference both full-size and half-size metal can configurations for this series. Confirm the 5V supply requirement matches your system design, as other variants in the TF family support different voltages. Ensure the ±1ppm stability specification meets your application's tolerance requirements before finalizing procurement.

Oscillators Selection Notes

Select this component when precise frequency accuracy is critical over wide temperature variations. The CMOS output simplifies interfacing with standard logic families. Consider the physical dimensions of the half-size metal can package to ensure adequate board space. Verify that the 5V supply voltage aligns with your power distribution network constraints.

Oscillators Part Context

This oscillator belongs to Taitien's TF Series, which specializes in temperature-compensated crystal oscillators. The series offers various frequency options and package sizes to meet diverse electronic design needs. The TFCABLJANF model specifically targets applications demanding high stability within a compact metal enclosure format.

Oscillators Replacement Considerations

Direct substitutes include other TCXOs with identical 11.0592MHz frequency, ±1ppm stability, and 5V CMOS specifications. Check pinout compatibility and physical footprint if replacing with components from different manufacturers.
