TFM-105-02-L-D-K-TR

Headers, Male Pins Overview

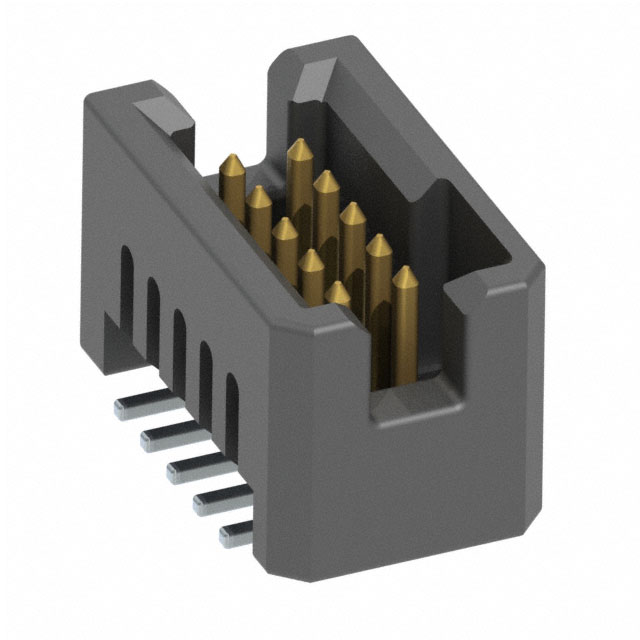

The TFM-105-02-L-D-K-TR is a high-reliability board-to-board connector from the Samtec Tiger Eye™ series. It features a 1.27mm (0.050 inch) pitch with 10 contacts arranged in a dual row configuration. The component utilizes surface mount termination for secure PCB attachment and employs a push-pull locking mechanism to ensure stable mating. Contact plating consists of flash gold over nickel, while the tail finish is tin. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0, supporting an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Utilizes the Tiger Eye™ terminal system designed for high mating cycle durability and reliable signal integrity.
• Incorporates a push-pull locking mechanism that provides secure retention and facilitates easy assembly and disassembly.
• Features a low-profile design compatible with automated pick-and-place manufacturing processes.

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Automotive electronic control units
• Industrial instrumentation systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation to confirm exact stacking height options and packaging configurations. Ensure compatibility with mating header strips regarding contact gender and alignment. Confirm that the surface mount termination type matches the target PCB fabrication capabilities.

Headers, Male Pins Selection Notes

Select this component when high reliability and repeated mating cycles are required. The dual-row layout maximizes pin density within a limited footprint. Verify that the specified stacking heights accommodate the mechanical clearance requirements of the assembly environment.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye™ family of connectors, which are engineered for demanding environments. The series offers various termination styles and stacking heights to support diverse board-to-board applications. The model designation indicates a standard surface mount variant with a push-pull lock.

Headers, Male Pins Replacement Considerations

Compatible mating headers include TFM-105-XX-L-D-K-TR variants. Ensure the counterpart maintains the same 1.27mm pitch and dual-row configuration for proper engagement.
