TFX62.C

$62.27

Description：TRANSPARENT FLEX ANTENNA COVERIN
Series：-
Mfr：Taoglas Limited
Package：Canister

SKU:e75a5f389c28 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TFX62.C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is TRANSPARENT FLEX ANTENNA COVERIN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for TFX62.C

Description：TRANSPARENT FLEX ANTENNA COVERIN
Series：-
Mfr：Taoglas Limited
Package：Canister
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
Frequency Range：617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Antenna Type：Module
Number of Bands：8
VSWR：-
Return Loss：-
Gain：-5.35dBi, -1.16dBi, 0.35dBi, 1.4dBi, 2.19dBi, 2.63dBi, 6.29dBi, 3.7dBi
Features：-
Termination：SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.512" (13.00mm)
Applications：4G, 5G, LTE, Wi-Fi
Power - Max：2 W

Antennas RF datasheet and documents for TFX62.C

TFX62.C

Antennas RF Overview

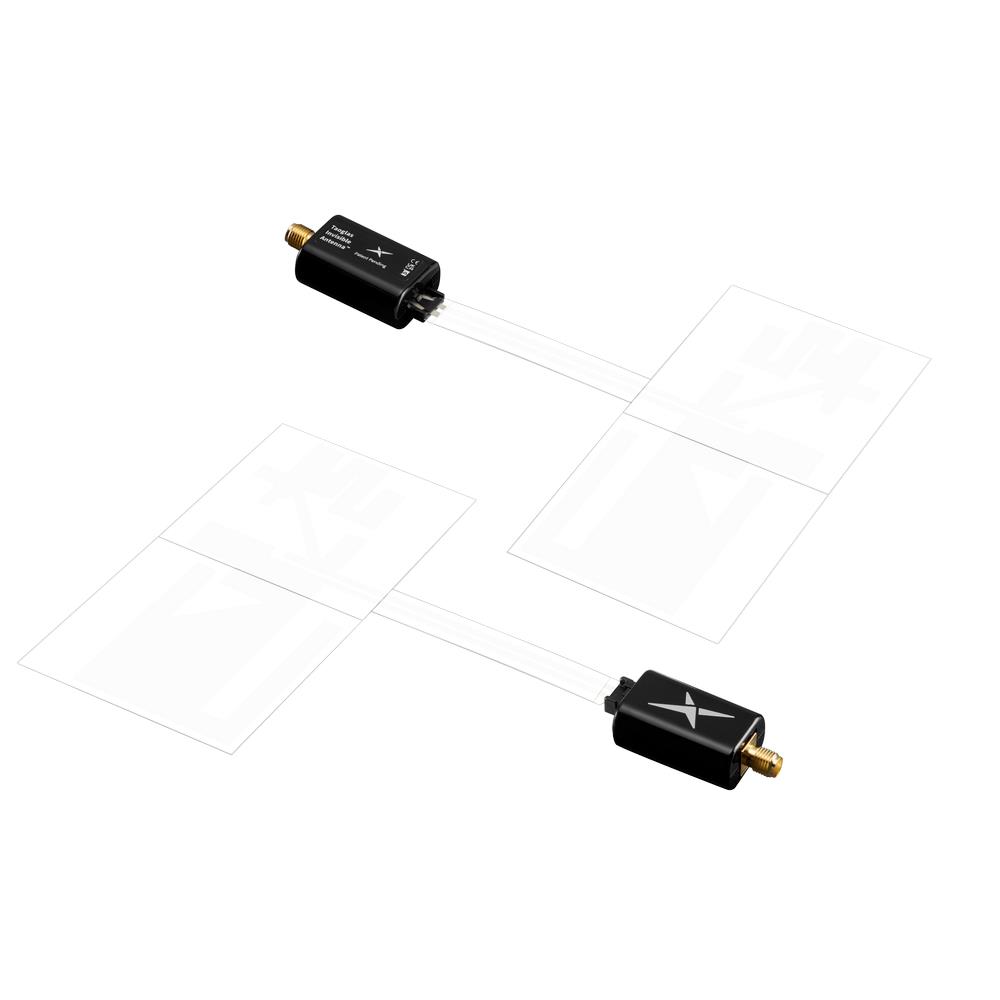

The TFX62.C is a transparent flexible RF antenna designed for wideband cellular connectivity, covering frequencies from 600MHz to 6000MHz. It supports global 5G, 4G LTE, and other cellular standards. The component features an integrated converter and an SMA female connector. It provides a gain of 3.7dBi and handles a maximum power of 2W. Designed for invisible installation on glass surfaces, it ensures robust wireless performance while maintaining aesthetic transparency.

Antennas RF Feature Summary

Transparent flexible design allows direct installation on windows and glass surfaces without visual obstruction
Wideband frequency coverage supports multiple cellular technologies including 5G, 4G LTE, and NB-IoT
Integrated signal converter with SMA female connector simplifies system integration

Antennas RF Applications

Smart building window IoT connectivity
Automotive telematics and infotainment systems
Public transportation vehicle communication modules
Digital signage displays requiring cellular data links

Antennas RF Procurement Notes

Verify the specific connector type and cable assembly requirements during procurement. Confirm that the integrated converter matches the host interface specifications. Ensure the installation surface is compatible with the adhesive backing for optimal signal transmission and mechanical stability.

Antennas RF Selection Notes

Select this model when visual aesthetics are critical and standard antennas are unsuitable. It is ideal for applications requiring seamless integration into glass structures. Consider the wideband coverage for multi-standard cellular deployments. Evaluate the need for external amplification if signal strength in low-power scenarios is a concern.

Antennas RF Part Context

This component belongs to Taoglas' Invisible Antenna portfolio, which specializes in transparent RF solutions. These antennas are engineered to provide high-performance wireless connectivity while remaining visually discreet. The series targets modern applications where traditional antenna visibility is undesirable or impractical.
