TG.64.8113

$8.18

Description：WIDEBAND (600-6000MHZ) LTE DIPOL
Series：-
Mfr：Taoglas Limited
Package：Bulk

SKU:a0f9d266200d Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TG.64.8113 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is WIDEBAND (600-6000MHZ) LTE DIPOL. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for TG.64.8113

Description：WIDEBAND (600-6000MHZ) LTE DIPOL
Series：-
Mfr：Taoglas Limited
Package：Bulk
RF Family/Standard：-
Frequency Group：-
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：-
Number of Bands：-
VSWR：-
Return Loss：-
Gain：-
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：-
Applications：-
Power - Max：-

Antennas RF datasheet and documents for TG.64.8113

TG.64.8113

Antennas RF Overview

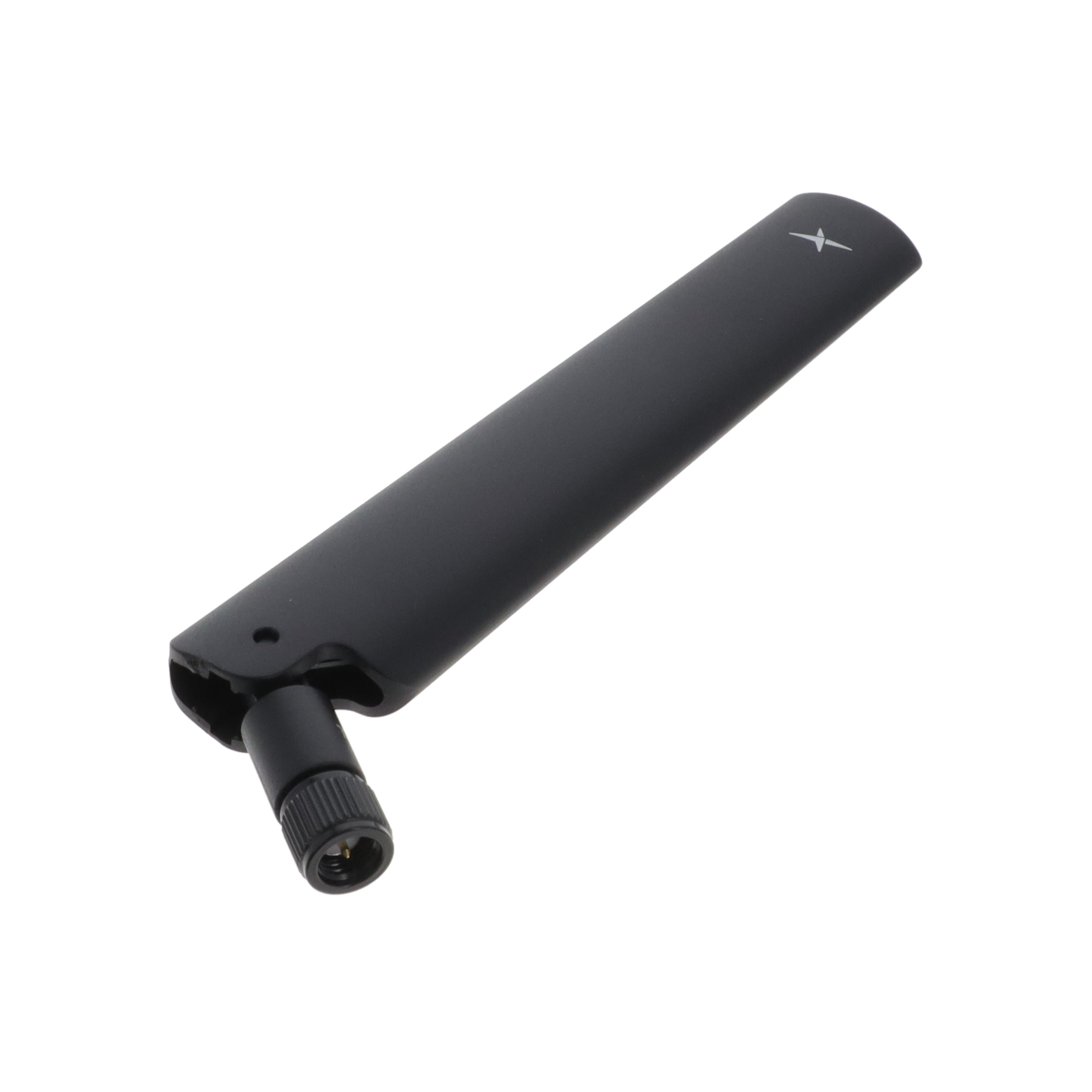

The Taoglas TG.64.8113 is a wideband LTE dipole terminal antenna designed for next-generation router and gateway applications. It operates across a frequency range of 600 MHz to 6000 MHz, supporting 4G/5G protocols. The component features a mechanical hinged style with a length of 135 mm and an impedance of 50 Ohms. It utilizes a right-angle SMA male connector and has a maximum operating temperature of +85°C.

Antennas RF Feature Summary

Supports wideband operation from 600 MHz to 6000 MHz for 4G and 5G connectivity
Features a hinged mechanical design for flexible positioning in router and gateway devices
Equipped with a robust right-angle SMA male connector interface

Antennas RF Applications

Next-generation router applications
Gateway device integration
LTE terminal installations

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturing updates may occur. Confirm that the right-angle SMA male connector matches your system interface requirements. Ensure the 135 mm length and hinged mounting style fit within the target enclosure dimensions. Check RoHS compliance status if environmental regulations apply to your deployment region.

Antennas RF Selection Notes

Select this model when broad frequency coverage from 600 MHz to 6 GHz is required for modern cellular standards. The hinged design offers physical flexibility not available in fixed PCB antennas. Consider the 50 Ohm impedance standard compatibility with common RF infrastructure. This part is suitable for indoor or sheltered outdoor environments given its +85°C temperature rating.

Antennas RF Part Context

This antenna belongs to the Taoglas LTE dipole terminal series, targeting high-performance wireless infrastructure. It complements other broadband solutions by providing extended frequency support beyond traditional narrowband LTE modules. The product line focuses on reliable connectivity for evolving network standards including 5G and NB-IoT.
