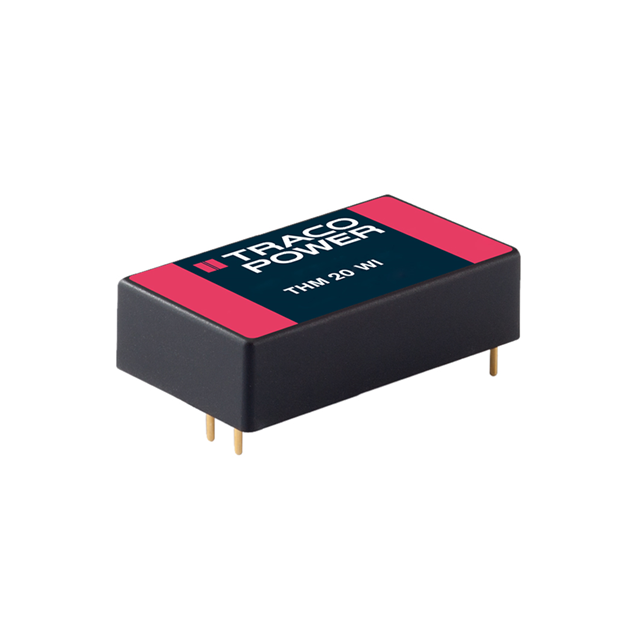

THM 20-4815WI

THM 20-4815WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 24V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THM 20-4815WI

• Description：DC DC CONVERTER 24V 20W
• Series：THM 20WI (20W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：833mA
• Power (Watts)：20 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：OCP, OTP, OVP, SCP
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：88.50%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for THM 20-4815WI
