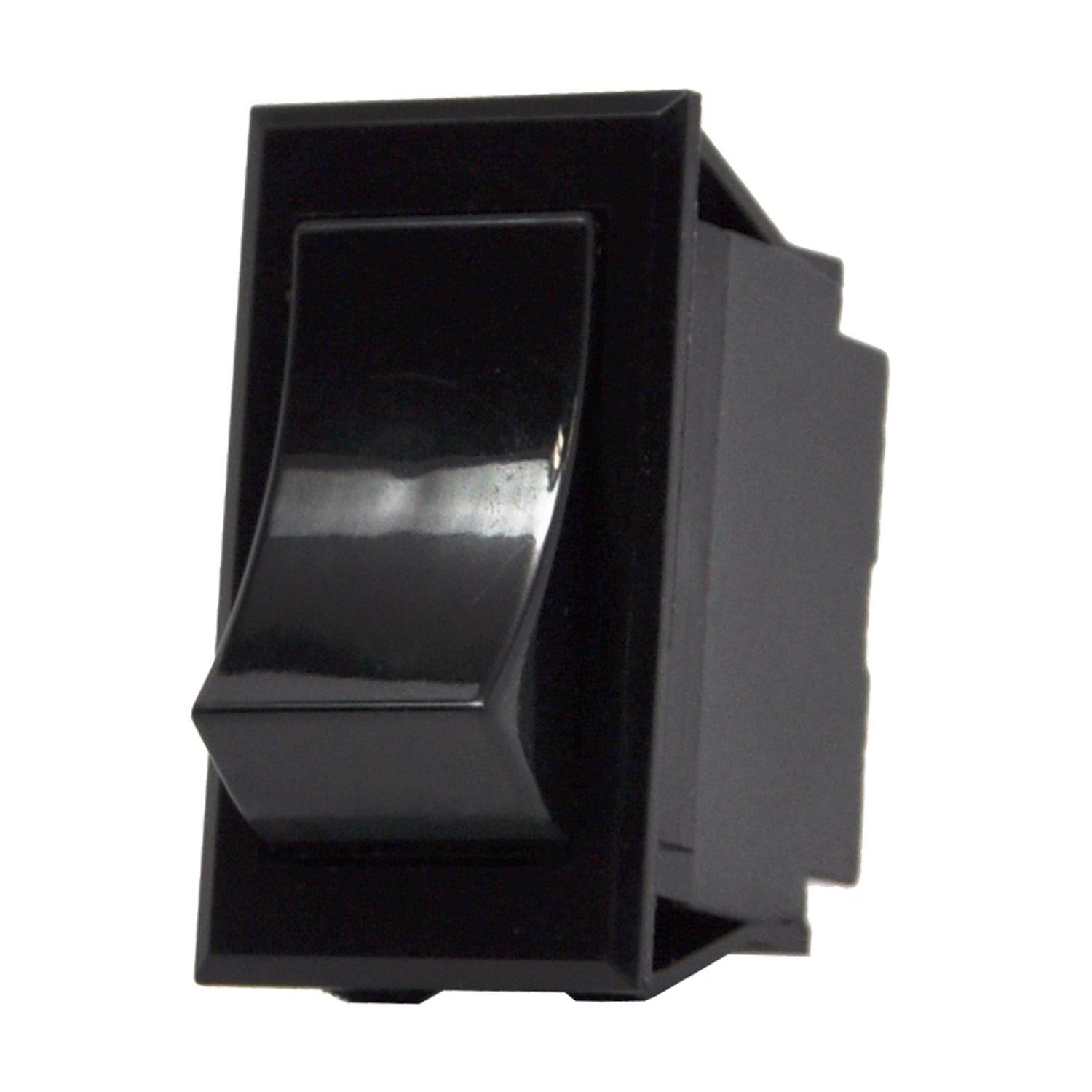

TIGM5M-6S-BL-NBL

TIGM5M-6S-BL-NBL is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Carling Technologies. Its product description is SWITCH ROCKER DPDT 15A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for TIGM5M-6S-BL-NBL

• Description：SWITCH ROCKER DPDT 15A 125V
• Series：TIG
• Mfr：Carling Technologies
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPDT
• Switch Function：Mom-Off-Mom
• Current Rating (Amps)：15A (AC/DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：28 V
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Rectangular - 36.83mm x 21.08mm
• Operating Temperature：-
• Approval Agency：CSA, UL, VDE

Rocker Switches datasheet and documents for TIGM5M-6S-BL-NBL
