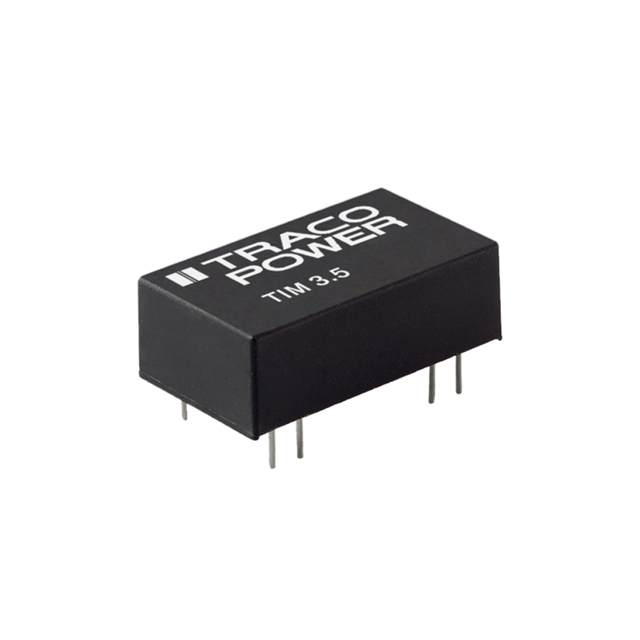

TIM 3.5-4811

TIM 3.5-4811 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 3.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TIM 3.5-4811

• Description：DC DC CONVERTER 5V 3.5W
• Series：TIM 3.5 (3.5W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：700mA
• Power (Watts)：3.5 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 7 Leads
• Size / Dimension：0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TIM 3.5-4811
