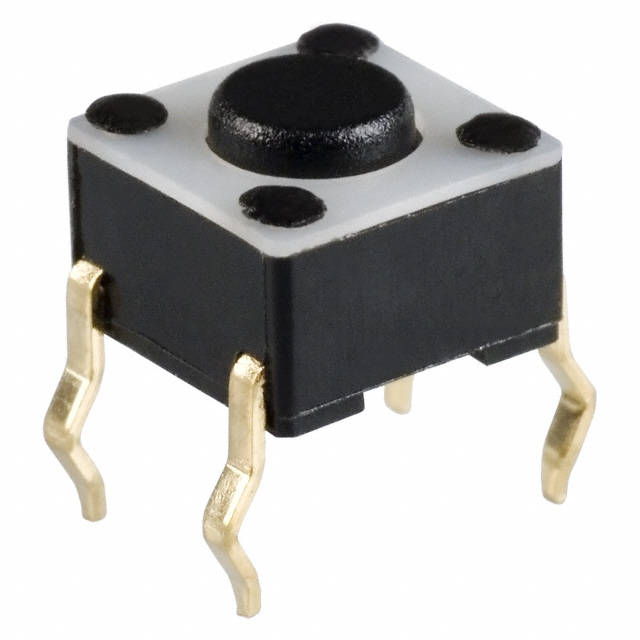

TL1105F160R

TL1105F160R is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACTILE SPST-NO 0.05A 50V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for TL1105F160R

• Description：SWITCH TACTILE SPST-NO 0.05A 50V
• Series：TL1105
• Mfr：E-Switch
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 50VDC
• Actuator Type：Standard
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：4.30mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：6.00mm x 6.00mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：160gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-20°C ~ 70°C

Tactile Switches datasheet and documents for TL1105F160R
