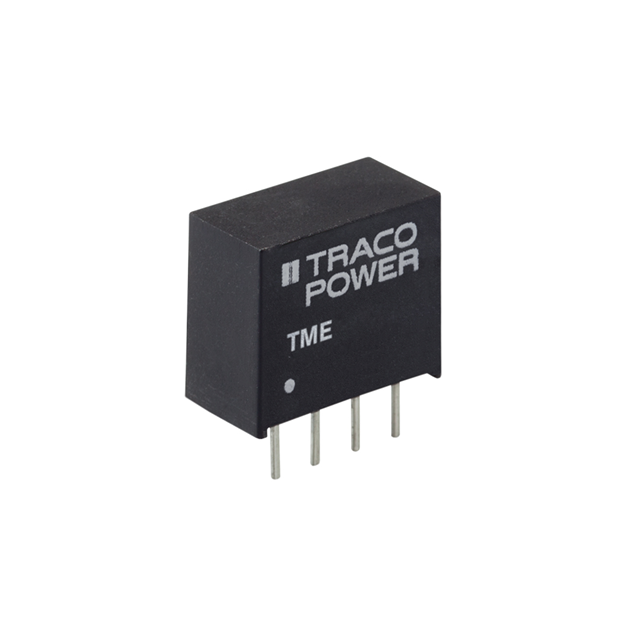

TME 1212S

TME 1212S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TME 1212S

• Description：DC DC CONVERTER 12V 1W
• Series：TME (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：84mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TME 1212S
