TMM-104-06-L-D-SM-P

Headers, Male Pins Overview

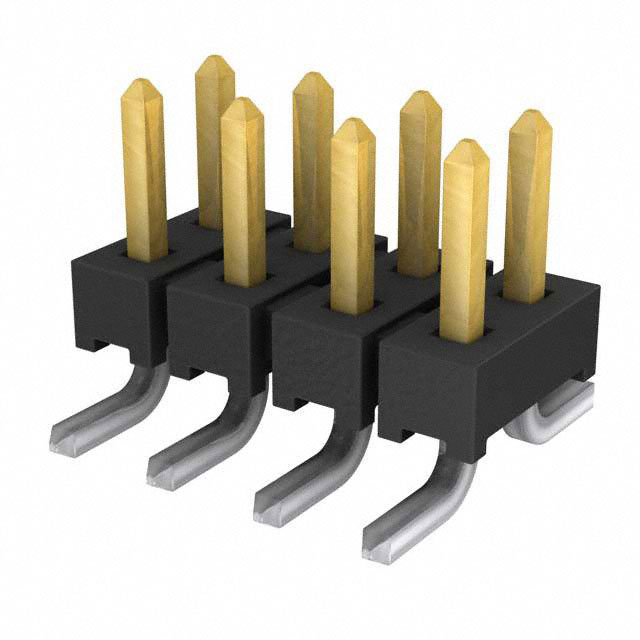

The TMM-104-06-L-D-SM-P is a Samtec Inc. Tiger Eye™ low profile header strip featuring a 2.00 mm (.079") pitch and an 8-position, 2-row configuration. Designed for surface mount termination, this component utilizes .020" (0.50 mm) square posts to ensure secure board-to-board or cable connections. It offers a current rating of up to 3.2 Amps per pin and supports vertical orientation. The part includes a polarized guide post option and is available in tape and reel packaging for automated assembly processes.

Headers, Male Pins Feature Summary

• Features a 2.00 mm pitch with .020 inch square posts for reliable signal integrity
• Supports FleXYZ design flexibility allowing movement in all three axes
• Includes polarized guide post holes to prevent incorrect mating
• Available in surface mount termination configurations for automated placement

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Automotive A-Series product applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec series print to confirm terminal type, contact plating, and packaging format. Ensure the selected variant matches the required surface mount footprint and polarization options. Confirm RoHS compliance status and automotive qualification requirements if applicable to the target application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density connection is required with a 2.00 mm pitch. Consider the 3.2 Amp current rating per pin for power distribution needs. Evaluate the need for polarized guide posts to ensure correct alignment during assembly. Verify that the surface mount termination style aligns with the PCB fabrication capabilities and reflow soldering profiles.

Headers, Male Pins Part Context

This part belongs to the Samtec Tiger Eye™ TMM series, which provides extensive design flexibility with configurations up to 200 pins in four rows. The series supports both through-hole and surface mount terminations, offering various height and pitch options to accommodate diverse electronic assembly requirements across industrial and consumer electronics sectors.

Headers, Male Pins Replacement Considerations

Consult the official Samtec cross-reference tools for verified substitute part numbers. Ensure any replacement maintains the identical 2.00 mm pitch, 8-position count, and surface mount termination style. Verify compatibility with existing polarized guide post features and current ratings to prevent functional mismatches.
