TPT1022Q-DFKR-S

Drivers, Receivers, Transceivers Overview

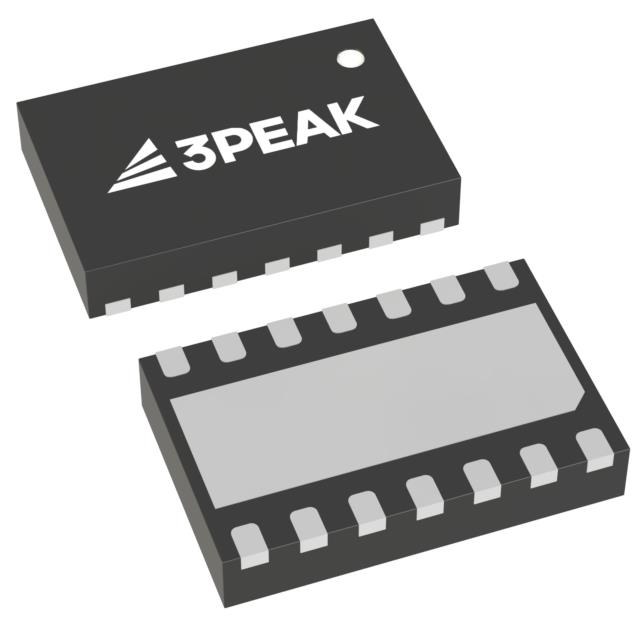

The TPT1022Q-DFKR-S is a dual local interconnect network (LIN) physical layer transceiver compliant with ISO 17987-4, SAE J2602, and LIN 2.0/2.1/2.2/2.2-A standards. It supports data rates up to 20 Kbps with an operating VBAT range of 5.5 V to 40 V. The device features low-current standby and sleep modes with bus wake-up capability, integrated pull-up resistors for slave applications, and ±45 V bus fault tolerance. It includes IEC 61000-4-2 ESD protection rated at ±10 kV on LIN bus pins. Qualified under AEC-Q100 Grade 1, it operates within a junction temperature range of -40°C to 150°C and is supplied in a DFN4.5X3-14 package.

Drivers, Receivers, Transceivers Feature Summary

• Dual-channel LIN transceiver supporting up to 20 Kbps communication speeds
• Integrated TXD dominant time-out function to prevent permanent bus blocking
• Low-current standby and sleep modes with remote LIN bus wake-up capability
• Robust protection including ±45 V bus fault tolerance and ±10 kV IEC ESD

Drivers, Receivers, Transceivers Applications

• Automotive body electronics and lighting systems
• Power train and chassis control modules
• Infotainment and instrument cluster interfaces
• Advanced driver assistance systems (ADAS)
• General automotive and transportation networks

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific ordering suffix 'DFKR-S' corresponds to the DFN4.5X3-14 leadless package with wettable flank technology and tape-and-reel transport media containing 4000 units. Confirm that the component meets the specified green manufacturing criteria, indicating RoHS compatibility and halogen-free status. Ensure the selected variant aligns with the required automated optical inspection capabilities for the chosen package type.

Drivers, Receivers, Transceivers Selection Notes

Select this component when a dual-channel LIN interface is required for automotive sub-networks. The wide VBAT input range from 5.5 V to 40 V accommodates various vehicle electrical systems. The inclusion of integrated pull-up resistors reduces external component dependency for slave nodes. Verify that the DFN4.5X3-14 package dimensions fit the available board space and thermal requirements for the target application environment.

Drivers, Receivers, Transceivers Part Context

The TPT1022Q belongs to the TPT102xQ series of automotive LIN transceivers manufactured by 3PEAK. This family provides localized interconnect solutions compliant with modern LIN physical layer specifications. The series offers single, dual, and quad channel options to support varying network complexity while maintaining consistent protection features and low-power operational modes across all variants.

Drivers, Receivers, Transceivers Replacement Considerations

Direct replacements include other TPT102xQ series members such as the TPT1021Q or TPT1024Q if pin counts differ. Cross-vendor equivalents must be verified against ISO 17987-4 compliance and AEC-Q100 Grade 1 qualification. Ensure substitute components match the 5.5 V to 40 V supply range and ±45 V bus fault tolerance specifications.

Drivers, Receivers, Transceivers FAQ

What is the maximum data rate supported by the TPT1022Q?

The TPT1022Q supports LIN data rates up to 20 Kbps.

How does the device handle TXD dominant conditions?

The device includes a TXD dominant time-out function that detects if TXD remains low for longer than the specified timeout period, disabling the transmitter to prevent permanent bus blocking.

Is the TPT1022Q qualified for automotive applications?

Yes, the TPT1022Q is AEC-Q100 qualified for automotive applications, Grade 1.

What ESD protection level is provided on the LIN bus pins?

The device provides IEC 61000-4-2 ESD protection rated at ±10 kV on the LIN bus pins.
