TS080F33CET

Crystals Overview

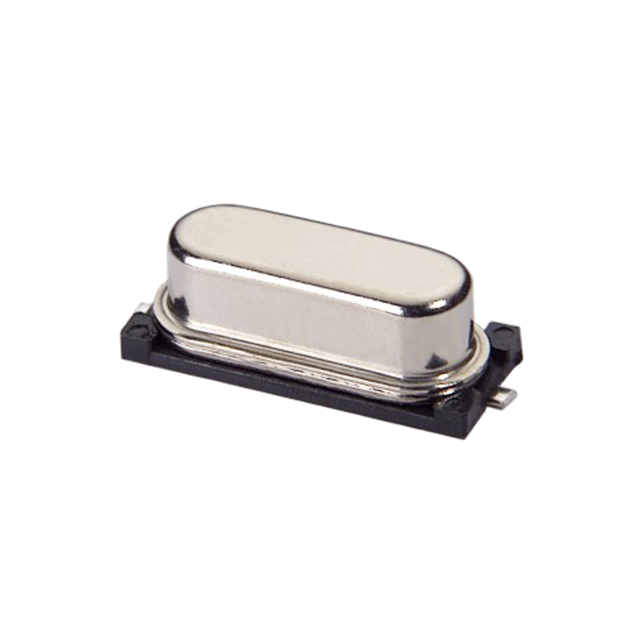

The TS080F33CET is a surface-mount MHz crystal manufactured by CTS-Frequency Controls. It operates at a nominal frequency of 8.0000 MHz with a frequency stability and tolerance of ±30ppm. The component features a load capacitance of 20pF and an equivalent series resistance (ESR) of 60 Ohms. It utilizes the HC-49/US-SM package, measuring 11.10mm in length, 4.83mm in width, and 4.30mm in maximum seated height. The device supports fundamental operating mode and functions within an operating temperature range of -20°C to 70°C.

Crystals Feature Summary

• Surface mount design for automated assembly integration
• Fundamental oscillation mode operation
• HC-49/US-SM package form factor

Crystals Applications

• General purpose timing circuits requiring 8 MHz reference
• Microcontroller clock sources
• Digital signal processing interfaces

Crystals Procurement Notes

Verify that the specific suffix 'CET' corresponds to the Tape & Reel packaging configuration as indicated in distributor listings. Confirm RoHS3 compliance status directly with the manufacturer or authorized suppliers prior to procurement. Ensure the selected variant matches the required 20pF load capacitance specification for the target circuit design. Check for active part status availability through official channels.

Crystals Selection Notes

Select this component when a standard 8 MHz frequency with ±30ppm stability is required for surface-mounted applications. The HC-49/US-SM package allows for compatibility with existing footprints designed for similar crystals. Consider the 60 Ohm ESR value when designing oscillator circuits to ensure proper startup conditions. Verify that the -20°C to 70°C temperature range meets the environmental requirements of the end application.

Crystals Part Context

This component belongs to the TS series of crystals from CTS-Frequency Controls, which are designed for general timing applications. The TS080F33CET specifically denotes the 8 MHz variant within this family. It shares physical dimensions with traditional through-hole HC-49/US crystals but is adapted for surface mount technology. The series typically offers fundamental mode operation across various frequencies.

Crystals Replacement Considerations

Public confirmed substitute part numbers include TS192F33CET and ABL-19.200MHZ-B4Y-T. Verify electrical parameters such as frequency, load capacitance, and ESR before substitution. Ensure mechanical footprint compatibility with the HC-49/US-SM package. Consult official datasheets for both components to confirm operational specifications.
