TSETTLJANF-10.000000

Oscillators Overview

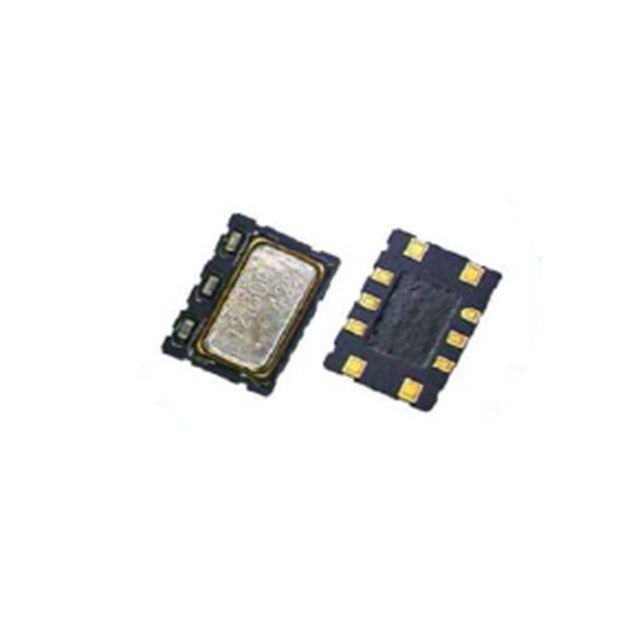

TSETTLJANF-10.000000 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Taitien, designed for precision clock generation in surface-mount applications. The device operates at a nominal frequency of 10 MHz with a stability of ±4.6 ppm across the specified temperature range. It functions on a 3.3 V supply voltage and draws a maximum current of 6 mA. The oscillator features CMOS output logic and includes an enable/disable control function. It is housed in a lead-free 10-SMD package with dimensions supporting automated assembly processes.

Oscillators Feature Summary

• Integrated temperature compensation for stable frequency performance
• Built-in enable and disable control functionality
• CMOS output signal compatibility
• Lead-free construction compliant with environmental standards

Oscillators Applications

• Precision timing circuits requiring stable clock references
• Telecommunications equipment base stations
• Industrial control systems with strict timing requirements
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct package variant and tolerance level match the design requirements. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Check for any recent revisions to the datasheet that may affect pinout or electrical characteristics. Ensure the supply voltage matches the 3.3V specification to prevent damage. Validate the enable/disable pin configuration against the system logic levels.

Oscillators Selection Notes

Select this component when a 10 MHz reference with ±4.6 ppm stability is required in a compact SMD form factor. Consider the 3.3V operating voltage and 6 mA current consumption for power budgeting. The enable/disable feature allows for power management strategies in battery-operated devices. Compare against other TCXOs if wider temperature ranges or different frequencies are needed.

Oscillators Part Context

This part belongs to Taitien's TCXO series, which provides compensated crystal oscillators for various frequency and package options. The brand specializes in frequency control products including crystals, VCXOs, and OCXOs. This specific model utilizes a 10-SMD no-lead package, distinguishing it from through-hole or larger surface-mount variants in the same product family.

Oscillators Replacement Considerations

Direct substitutes must match the 10 MHz frequency, ±4.6 ppm stability, 3.3V supply, and 10-SMD package. Verify pin-to-pin compatibility and identical enable/disable functionality. Cross-reference with other manufacturers' TCXOs offering similar thermal compensation and CMOS outputs.
