TSM-108-02-T-DV-A

Headers, Male Pins Overview

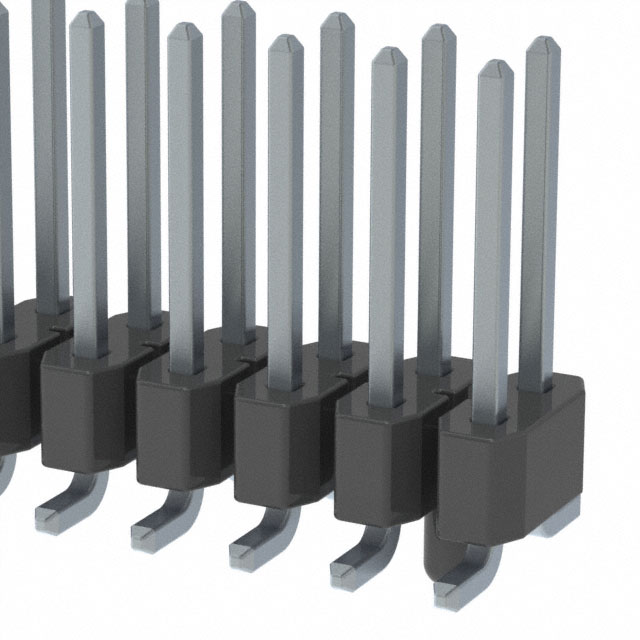

The Samtec TSM-108-02-T-DV-A is a .100 inch (2.54 mm) pitch surface mount terminal strip featuring 16 positions in a dual-row configuration. It utilizes phosphor bronze contacts with tin plating and liquid crystal polymer insulation rated UL 94 V-0. Designed for board-to-board or cable applications, it supports a maximum operating temperature of +105°C and withstands up to 4.1 A current per contact.

Headers, Male Pins Feature Summary

• Designed specifically for surface mount applications with mixed technology pin options
• Features standard post heights compatible with various socket solutions
• Constructed with high-performance liquid crystal polymer insulation

Headers, Male Pins Applications

• Board-to-Board interconnects
• Cable connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official documentation to confirm exact pin configuration and termination style. Ensure the selected variant matches the required surface mount processing capabilities and environmental ratings for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a reliable surface mount header with .100 inch spacing is required. The tin-plated phosphor bronze contacts offer cost-effective conductivity suitable for general-purpose interconnects where high-frequency performance does not strictly demand gold plating.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions from Samtec. These terminal strips are engineered for extended life and severe environments, often meeting MIL-DTL-55302 testing standards while providing robust mechanical stability for automated assembly processes.

Headers, Male Pins Replacement Considerations

TSM-108-02-S-DV-A offers identical physical dimensions with gold-plated contacts for enhanced corrosion resistance. TSM-108-02-G-DV-A provides gold plating with potentially different contact material specifications.
