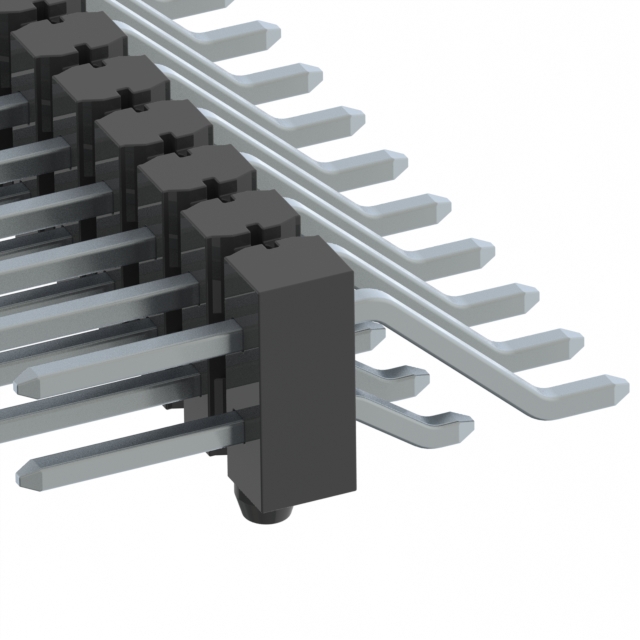

TSM-116-01-TM-DH-A-K-TR

TSM-116-01-TM-DH-A-K-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 32POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-116-01-TM-DH-A-K-TR

• Description：CONN HEADER SMD R/A 32POS 2.54MM
• Series：TSM
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：32
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.240" (6.10mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：Board Guide, Pick and Place
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-116-01-TM-DH-A-K-TR
