TSM-121-01-L-SH-A

Headers, Male Pins Overview

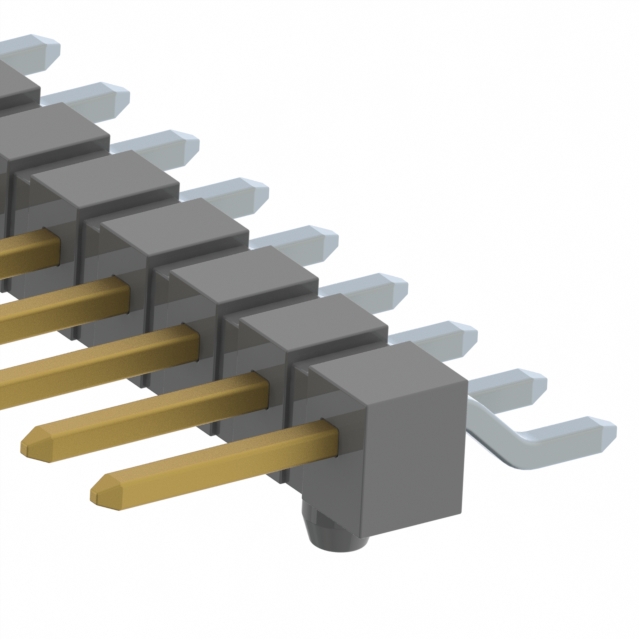

The TSM-121-01-L-SH-A is a board connector featuring 21 contacts arranged in a single row. It utilizes a male contact configuration with a 0.1 inch (2.54 mm) pitch. The component employs surface mount termination technology and incorporates black liquid crystal polymer insulation. Designed for right-angle installation, it offers a rated signal current of 7 A. The connector supports mixed mating parts and includes peg-based PCB mounting options for stability during assembly.

Headers, Male Pins Feature Summary

• Flexible stacking design accommodates varying board heights through standard post height options
• Extended Life Product certification ensures durability via 10-year Mixed Flowing Gas testing
• High mating cycle capability ranging from 250 to 2,500 cycles for repeated connection requirements
• Surface mount construction facilitates automated processing with mixed technology pin options

Headers, Male Pins Applications

• High-speed data transmission interfaces requiring up to 8 Gbps performance
• Automotive electronic systems utilizing A-Series product configurations
• Severe environment applications meeting MIL-DTL-55302 testing standards
• Board-to-board or cable connections in compact surface mount layouts

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact physical dimensions and termination styles. Ensure compatibility with mating connectors by checking the available multiple mating parts list. Confirm RoHS compliance status and moisture sensitivity levels prior to integration into production workflows.

Headers, Male Pins Selection Notes

Select this component when right-angle surface mount connectivity is required for high-density signal routing. The 0.1 inch pitch allows for standard spacing while maintaining robust mechanical stability. Consider the extended life features for applications demanding high reliability and frequent mating cycles in harsh environments.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions manufactured by Samtec Inc. The series is engineered for surface mount applications, offering various row counts and pin configurations. It is designed to provide reliable interconnection in space-constrained electronic assemblies requiring durable and flexible mounting solutions.

Headers, Male Pins Replacement Considerations

TSM-121-01-F-SH-A-P-TR: Features similar 21-contact layout but differs in contact material finish and includes a PEG mounting option. Verify electrical ratings and mechanical fit before substitution.
