TSW-104-09-G-S

Headers, Male Pins Overview

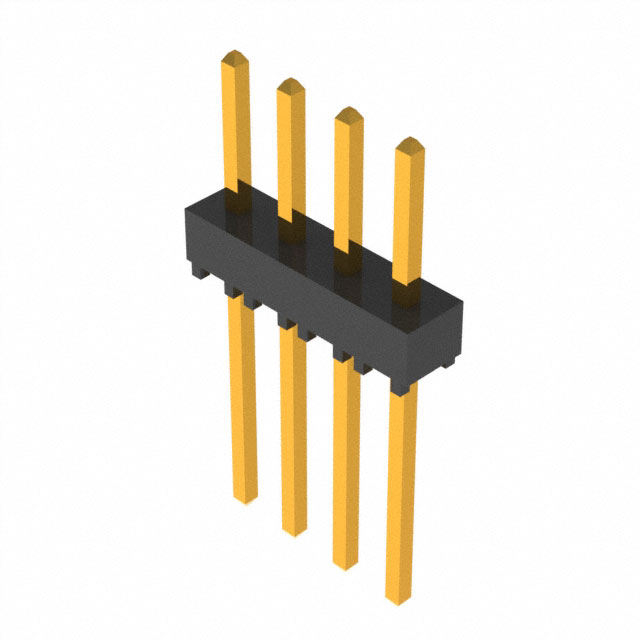

Samtec TSW-104-09-G-S is a single-row, through-hole pin header with four positions and a 2.54 mm (0.1 in) pitch. It features phosphor bronze contacts with gold plating, rated for up to 6.3 A current and 550 VAC voltage. The housing is made of Polybutylene Terephthalate (PBT) with UL 94 V-0 flammability rating. Operating temperature ranges from -55°C to +125°C. Mating post length is 5.84 mm (0.23 in), and solder tail length is 10.16 mm (0.4 in).

Headers, Male Pins Feature Summary

• Unshrouded through-hole design with square-post terminals.
• Gold-plated phosphor bronze contacts for reliable signal transmission.
• High dielectric strength supporting up to 550 VAC ratings.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' indicates gold plating thickness and 'S' denotes single row configuration. Confirm that the part number matches the vertical orientation variant rather than right-angle or shrouded versions. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mating partner compatibility before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard unshrouded header with 2.54 mm spacing is required for low-profile board stacking. Ensure the mating connector accepts 0.025 inch square posts. Consider the 4-position count and single-row layout against available PCB space constraints and thermal requirements within the specified operating temperature range.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic terminal strip headers designed for general-purpose electronic interconnects. This specific model belongs to the standard height category, offering a balance between mechanical stability and compact footprint. It serves as a fundamental building block for prototyping and production assemblies requiring robust through-hole mounting solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec TSW variants with identical 4-position, single-row, 2.54 mm pitch specifications. Verify that alternative parts maintain the same contact material, plating type, and housing flammability rating to ensure electrical and mechanical equivalence in existing designs.
