TSW-110-09-L-D-LC

Headers, Male Pins Overview

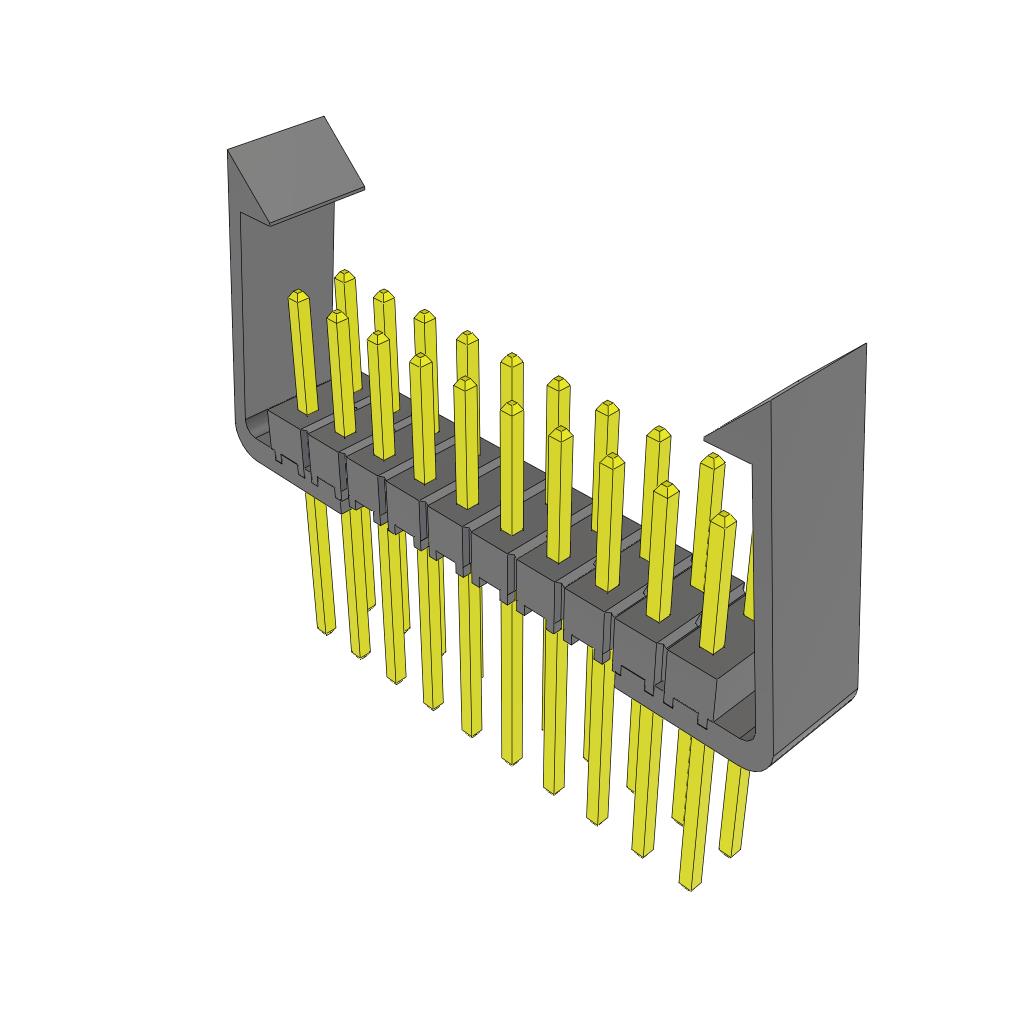

The TSW-110-09-L-D-LC is a vertical male header manufactured by Samtec Inc. It features a 2.54 mm (0.1 inch) pitch with 20 contacts arranged in a dual row configuration. The component utilizes phosphor bronze terminals and offers a current rating of 6.3A with a voltage range of 400VAC to 550VAC. Designed for through-hole mounting, it provides reliable board-to-board or wire-to-board connectivity.

Headers, Male Pins Feature Summary

• Vertical orientation for standard PCB integration
• Phosphor bronze terminal construction for durability
• Through-hole solder termination method

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm pin count, pitch, and termination style. Ensure compliance with RoHS standards if required for your application. Cross-reference manufacturer datasheets for accurate electrical ratings and mechanical dimensions before procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, unshrouded header with a 2.54mm pitch is required. Consider the 6.3A current rating and 400VAC-550VAC voltage range for suitability. Verify that through-hole mounting aligns with the PCB design constraints and available space for the dual-row configuration.

Headers, Male Pins Part Context

This component belongs to the Samtec TSW series of square-post headers. These headers are designed for high-reliability applications, offering robust mechanical stability and consistent electrical performance across various industrial and commercial electronics environments.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not match the specific phosphor bronze material properties or precise dimensional tolerances required for reliable operation.
