TSW-115-08-L-D-RA

Headers, Male Pins Overview

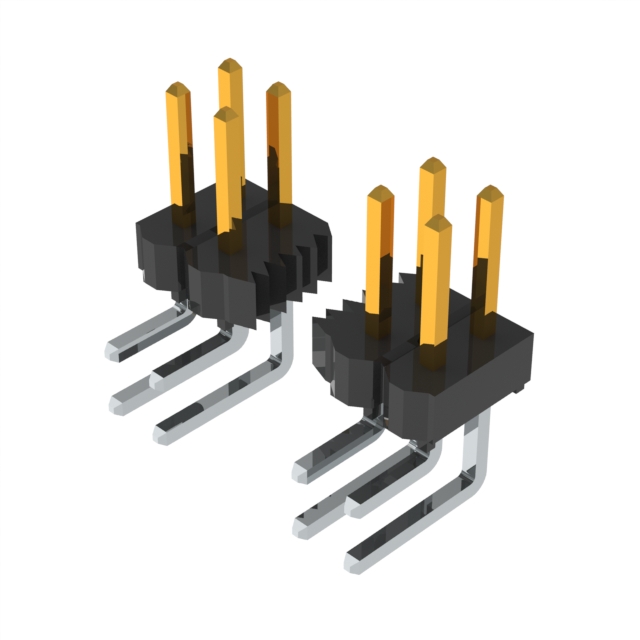

Samtec Inc. TSW-115-08-L-D-RA is a right-angle through-hole header strip featuring a 2.54 mm (0.100 inch) pitch and 30 positions across two rows. The connector utilizes phosphor bronze contacts with a gold plating thickness of 30.0 µin (0.76 µm) on the mating interface, while the tail section features matte tin over nickel. Designed for board-to-board or cable applications, it offers an insulation height of 0.219 inches and operates within a temperature range of -55°C to 125°C. The unit employs a push-pull fastening type and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Features industry-leading design flexibility with numerous lead styles, plating options, and pin configurations.
• Utilizes a .025-inch square post contact system for reliable interconnection.
• Supports vertical and right-angle orientations for versatile PCB layout integration.

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Cable-to-board connections
• Retrofit applications in electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to ensure correct plating and terminal length specifications. Confirm that the selected variant matches the required RoHS compliance status and moisture sensitivity level for your manufacturing process. Cross-reference the DigiKey part number SAM15209-ND for accurate distributor identification and documentation access during procurement.

Headers, Male Pins Selection Notes

Select this component when a standard 0.100-inch pitch header is required for general-purpose applications. Consider the TSW series for its extensive variety of standard pin counts and terminal lengths. Ensure the right-angle orientation fits the mechanical constraints of the assembly. Evaluate the gold plating option for improved corrosion resistance compared to tin-only variants.

Headers, Male Pins Part Context

The TSW series represents a classic line of PCB header strips from Samtec, known for providing cost-effective and ruggedized interconnect solutions. This specific model belongs to the standard TSW family, which allows for significant customization through various ordering suffixes. It serves as a foundational component for connecting printed circuit boards or cables in a wide array of electronic systems requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

TSW-105-08-L-D-RA: Offers identical electrical characteristics but provides only 10 positions instead of 30. HTSW-115-08-L-D-RA: Provides similar dimensions but features a different header style configuration. IPS1-115-01-L-D-RA: A socket counterpart rather than a header, suitable for mating with this component but serving a different connector gender role.
