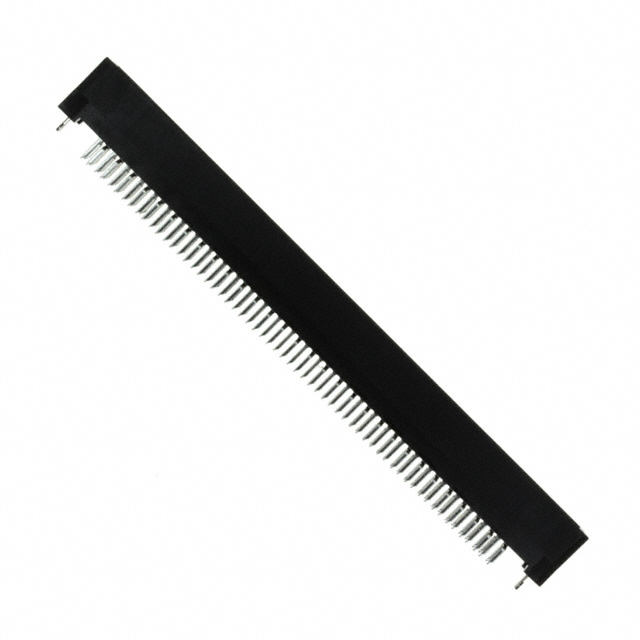

Arrays, Edge Type, Mezzanine (Board To Board) TX25-120P-6ST-H1E product image

TX25-120P-6ST-H1E

$3.40

Description：CONN PLUG 120POS VERT GOLD
Series：TX25
Mfr：JAE Electronics
Package：Tray

SKU:fd334ed5c396 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TX25-120P-6ST-H1E is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN PLUG 120POS VERT GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for TX25-120P-6ST-H1E

Description：CONN PLUG 120POS VERT GOLD
Series：TX25
Mfr：JAE Electronics
Package：Tray
Connector Type：Plug, Center Strip Contacts
Number of Positions：120
Pitch：0.050" (1.27mm)
Number of Rows：2
Mounting Type：Through Hole
Features：Board Lock
Contact Finish：Gold
Contact Finish Thickness：4.00µin (0.100µm)
Mated Stacking Heights：12mm, 16mm, 18mm
Height Above Board：0.362" (9.20mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for TX25-120P-6ST-H1E

TX25-120P-6ST-H1E
