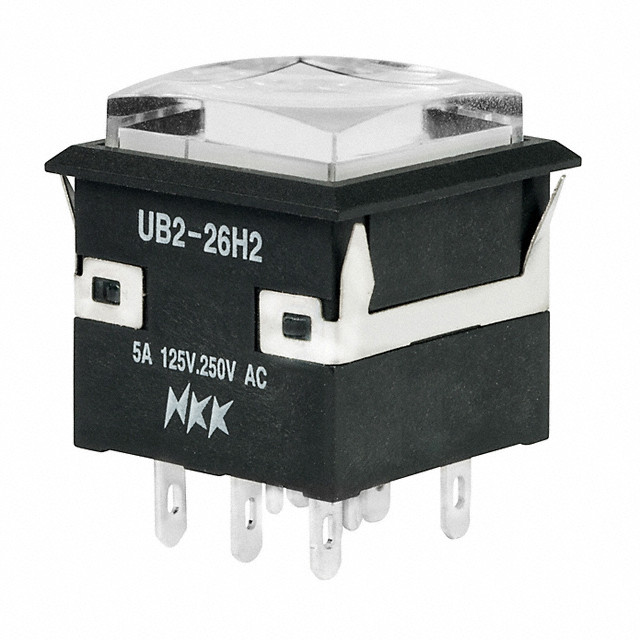

UB226KKW016B-1JB

UB226KKW016B-1JB is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH PUSHBUTTON DPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for UB226KKW016B-1JB

• Description：SWITCH PUSHBUTTON DPDT 5A 125V
• Series：UB2
• Mfr：NKK Switches
• Package：Tray
• Mounting Type：Panel Mount, Snap-In
• Type：Standard, Illuminated
• Circuit：DPDT
• Switch Function：On-On
• Current Rating (Amps)：5A (AC/DC)
• Actuator Type：Square, Button
• Actuator Marking：No Marking
• Color - Actuator/Cap：Clear (White Filter/Diffuser)
• Illumination Type, Color：LED, White
• Illumination Voltage (Nominal)：3.3 VDC
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：Sealed - Fully
• Panel Cutout Dimensions：Square - 17.40mm x 17.40mm
• Operating Temperature：-25°C ~ 50°C
• Voltage Rating - DC：30 V
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for UB226KKW016B-1JB
