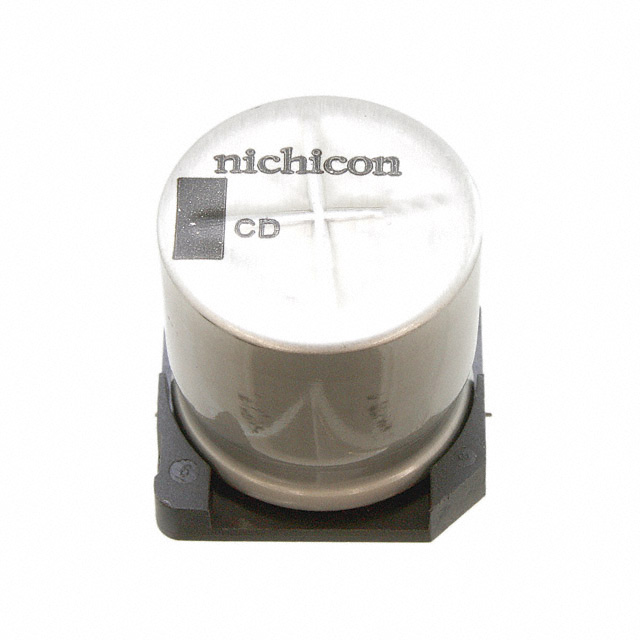

UCD1E222MNJ1MS

UCD1E222MNJ1MS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 2200UF 20% 25V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UCD1E222MNJ1MS

• Description：CAP ALUM 2200UF 20% 25V SMD
• Series：UCD
• Mfr：Nichicon
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：2200 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：900 mA @ 120 Hz
• Ripple Current @ High Frequency：1.8 A @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.630" Dia (16.00mm)
• Height - Seated (Max)：0.689" (17.50mm)
• Surface Mount Land Size：0.673" L x 0.673" W (17.10mm x 17.10mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：35 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UCD1E222MNJ1MS
