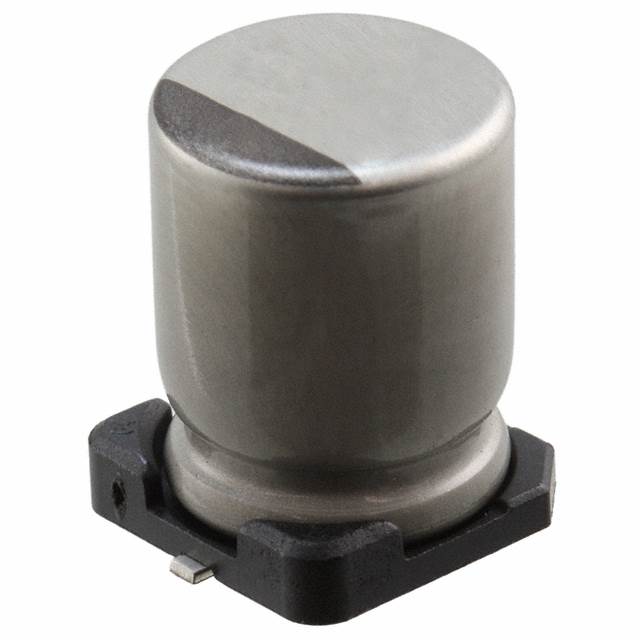

ULR2D120MNL1GS

ULR2D120MNL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 12UF 20% 200V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ULR2D120MNL1GS

• Description：CAP ALUM 12UF 20% 200V SMD
• Series：ULR
• Mfr：Nichicon
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：12 µF
• Tolerance：±20%
• Voltage - Rated：200 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：3000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：General Purpose
• Ripple Current @ Low Frequency：50 mA @ 120 Hz
• Ripple Current @ High Frequency：80 mA @ 10 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.433" (11.00mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for ULR2D120MNL1GS
