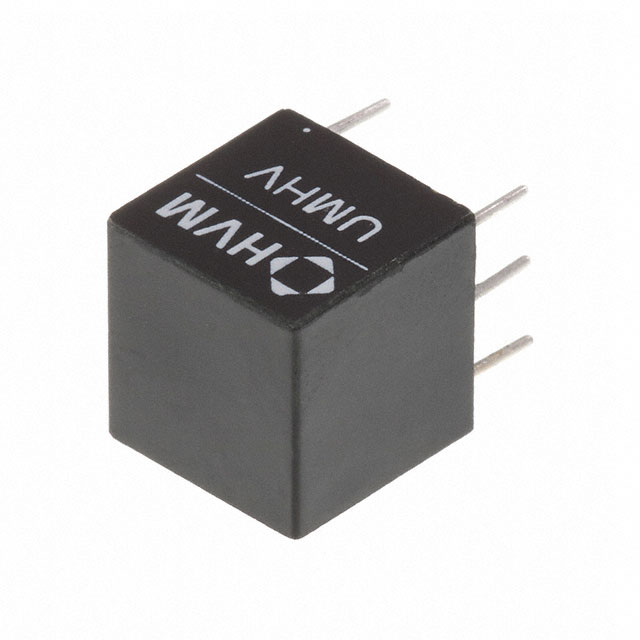

UMHV0530N

UMHV0530N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists HVM Technology, Inc.. Its product description is DC DC CONVERTER -3000V 500MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for UMHV0530N

• Description：DC DC CONVERTER -3000V 500MW
• Series：UMHV
• Mfr：HVM Technology, Inc.
• Package：Bulk
• Type：High Voltage - Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：-3000V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：167µA
• Power (Watts)：500 mW
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-55°C ~ 70°C
• Efficiency：55%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for UMHV0530N
