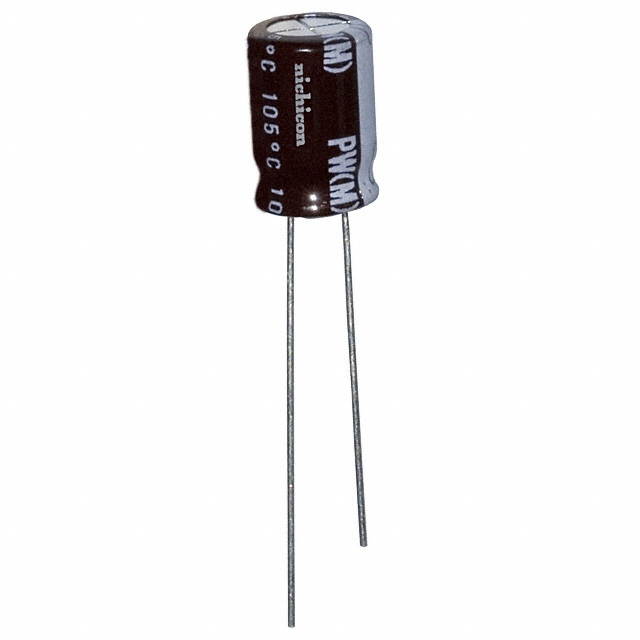

UPW0J561MPD

UPW0J561MPD is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 560UF 20% 6.3V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UPW0J561MPD

• Description：CAP ALUM 560UF 20% 6.3V RADIAL
• Series：UPW
• Mfr：Nichicon
• Package：Bulk
• Capacitance：560 µF
• Tolerance：±20%
• Voltage - Rated：6.3 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：3000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：General Purpose
• Ripple Current @ Low Frequency：416.25 mA @ 120 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：0.138" (3.50mm)
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.453" (11.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：117 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UPW0J561MPD
