VCMT053T-4R7MN5

Fixed Inductors Overview

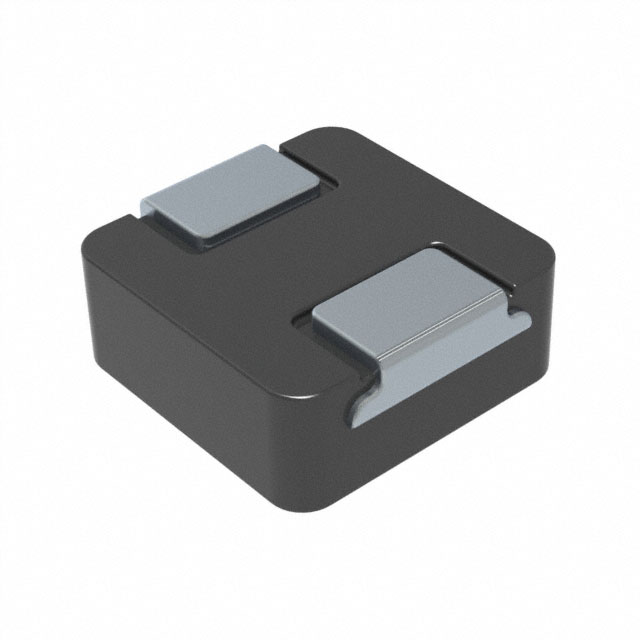

The VCMT053T-4R7MN5 is a fixed surface-mount power inductor manufactured by Delta Electronics/Cyntec. It provides an inductance of 4.7 µH with a maximum DC resistance of 59 mΩ. The component supports a saturation current of 3.9 A and a maximum current rating of 4.4 A. It features a nonstandard footprint measuring 5.8 mm by 5.45 mm with a seated height of 3.00 mm. The device is RoHS3 compliant and classified under ECCN EAR99.

Fixed Inductors Feature Summary

• Unshielded magnetic design for flexible PCB layout integration
• High saturation current capability to handle transient load spikes
• Low DC resistance construction to minimize conduction losses

Fixed Inductors Applications

• DC-DC converter output filtering
• Point-of-load (POL) regulation stages
• Power supply input chokes

Fixed Inductors Procurement Notes

Verify the specific suffix MN5 against the official datasheet to confirm the exact physical dimensions and tolerance class. Ensure that the ordering part number matches the required inductance value of 4.7 µH precisely. Confirm compliance requirements such as RoHS3 status prior to final procurement approval.

Fixed Inductors Selection Notes

Select this component when a 4.7 µH inductance value is required with a saturation current threshold above 3.9 A. The nonstandard package size necessitates careful consideration of available PCB real estate. Verify that the maximum current rating of 4.4 A aligns with the steady-state operational requirements of the target circuit.

Fixed Inductors Part Context

This model belongs to the VCMT053T series of power chokes from Cyntec. The series includes variants with different inductance values, such as 10 µH and 15 µH, sharing similar structural characteristics. The product line focuses on SMD power inductors designed for high-current applications in modern electronic equipment.

Fixed Inductors Replacement Considerations

Direct substitutes within the same series include VCMT053T-2R2MN5 and VCMT053T-100MN5. These alternatives share the same manufacturer and general form factor but differ significantly in inductance and current ratings. Cross-model replacement requires verification of electrical parameters.
